DCA2 / DCN3 / XS4

last update: November 12, 2012

Peripheral Devices for Environment-resistive Slaves

Peripheral Devices for DeviceNet Communications

Environment-resistive Connection Products (for Thin Cable, M12 Micro Connectors)

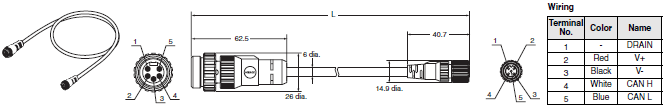

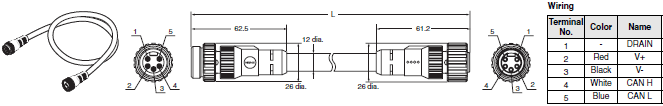

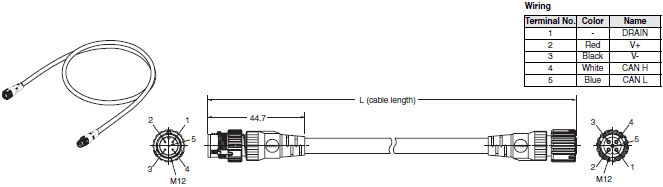

Cables with Connectors on Both Ends
DCA1-5CN[][]W1

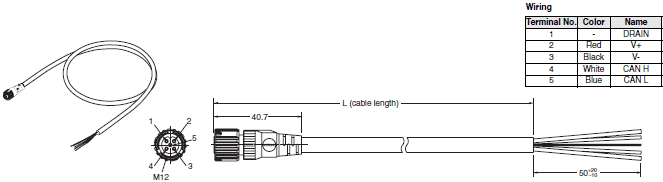

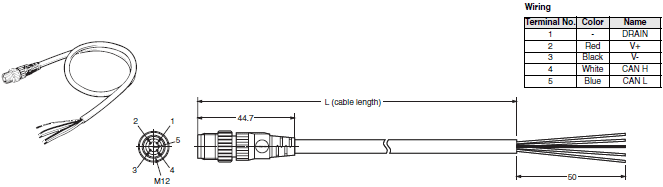

Cables with Connector on Single End (Socket)
DCA1-5CN[][]F1

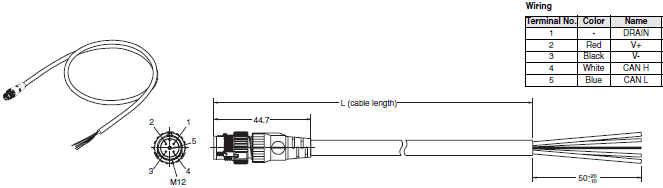

Cables with Connector on Single End (Plug)
DCA1-5CN[][]H1

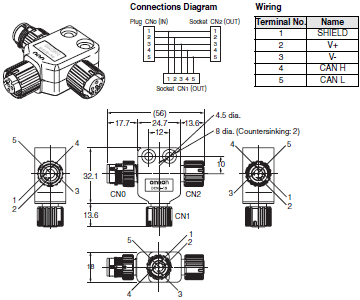

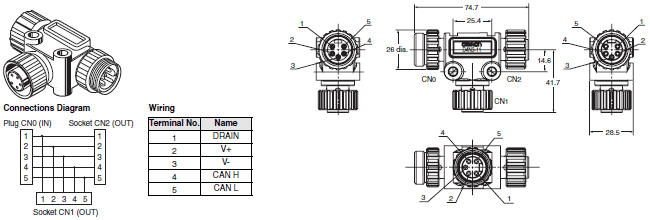

T-branch Connector
DCN2-1

Connectors with Terminating Resistance
DRS2-1 (Plug)
DRS2-2 (Socket)

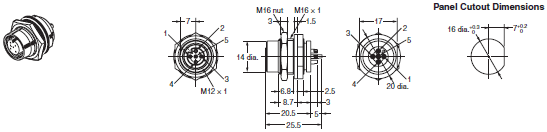

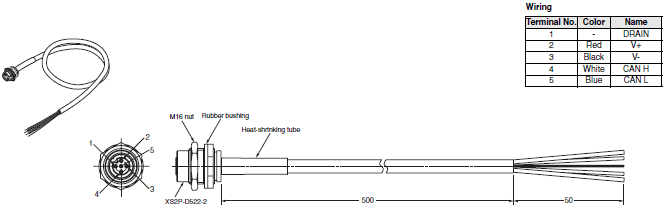

Panel-mounting Connector (Socket) with 0.5 m Cable
DCA1-5CNC5P1

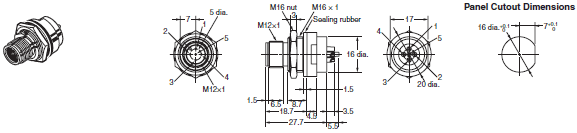

Panel-mounting Connector (Socket), Solder-cup Terminals
XS2P-D522-2

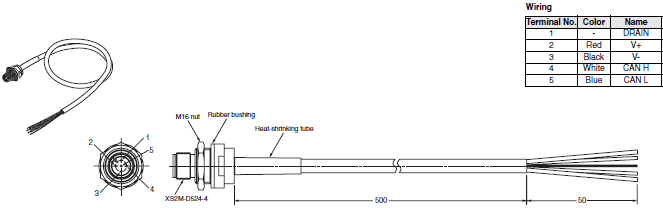

Panel-mounting Connector (Plug) with 0.5 m Cable
DCA1-5CNC5M1

Panel-mounting Connector (Socket), Solder-cup Terminals
XS2M-D524-4

Environment-resistive Models (for Thin Wires and M12 Micro Connectors)

Cables with Connectors on Both Ends
DCA1-5CS[][]W1

Cables with Connector on Single End (Socket)
DCA1-5CS[][]F1

Cables with Connector on Single End (Plug)
DCA1-5CS[][]H1

T-branch Connector
DCN2-1S

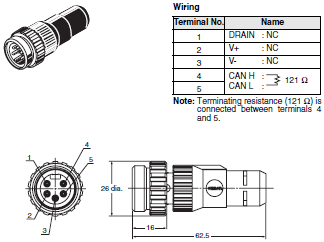

Connectors with Terminating Resistance
DRS2-1S (Plug)
DRS2-2S (Socket)

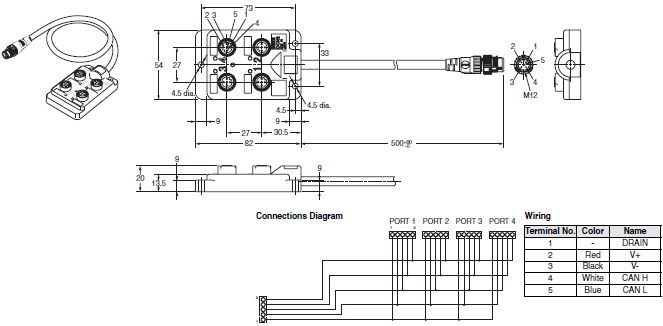

Shielded Branch Relay Box with Four Ports
DCN2-S4C5H1

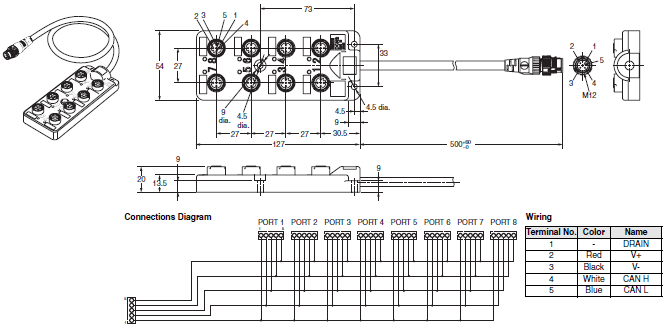

Shielded Branch Relay Box with Eight Ports
DCN2-S8C5H1

Environment-resistive Models for Thick Wires with 7/8-16UN Mini Connectors

Thick Cable with Connectors on Both Ends (5 Conductors for Communications)
DCA2-5CN[][]W1

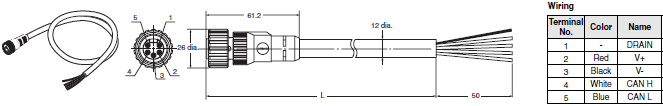

Thick Cable with Connector Socket on One End (5 Conductors for Communications)
DCA2-5CN[][]F1

Thick Cable with Connector Plug on One End (5 Conductors for Communications)
DCA2-5CN[][]H1

Thin Cable with Connectors on Both Ends (5 Conductors for Communications)
DCA1-5CN[][]W5

Thin Cable with Panel-mounting Connector Socket on One End (5 Conductors for Communications)
DCA2-5CNC5P1

Panel-mounting Connector (Plug) with 0.5 m Cable
DCA2-5CNC5M1

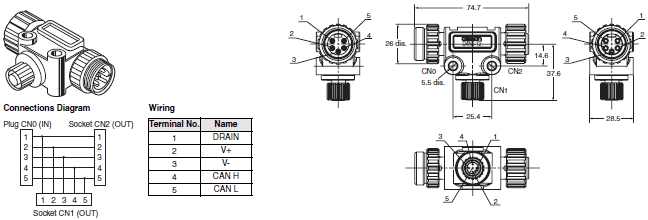

T-branch Connector (5 Conductors for Communications, Thick Wire Branch Line)
DCN3-11

T-branch Connector (5 Conductors for Communications, Thin Wire Branch Line)
DCN3-12

Connector (Plug) with Terminating Resistance
DRS3-1

Panel-mounting Connector (5 Pins for Communications)
XS4M-D521-1
