E6CP-A
Low-cost Encoder with Diameter of 50 mm
General-purpose Absolute Encoder with External Diameter of 50 mm
about this Product Family
Related Contents
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: November 12, 2012
Caution: All units are in millimeters unless otherwise indicated.

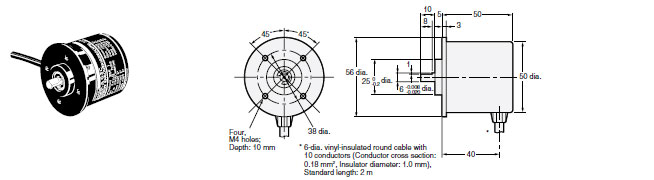

Encoder
E6CP-AG3C
E6CP-AG5C
The E69-C06B Coupling is provided.
E6CP-AG5C-C
The E69-C06B Coupling is sold separately.
Accessories (Order Separately)

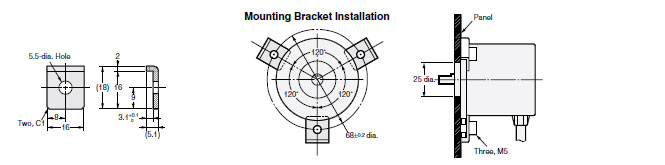

Servo Mounting Bracket
E69-2
Note: Provided with the product.

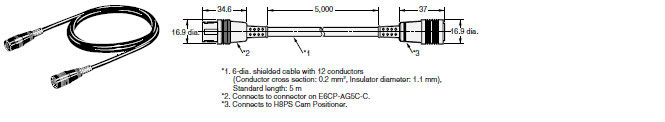

Extension Cable
E69-DF5
Note: 1. The E69-DF5 (5 m) is also available with the following cable lengths: 10 m, 15 m, 20 m, and 98 m.
2. Cable can be extended to 100 m when the H8PS Cam Positioner is connected.
2. Cable can be extended to 100 m when the H8PS Cam Positioner is connected.
