R88M-1[] / R88D-1SN[]-ECT

AC Servo System 1S-series

R88M-1[] / R88D-1SN[]-ECT

Optimized installation and setup Increased machine productivity Global availability and global conformance

Item list of R88M-1[] / R88D-1SN[]-ECT

about this Product Family

Related Contents

last update: September 01, 2016

Caution: All units are in millimeters unless otherwise indicated.

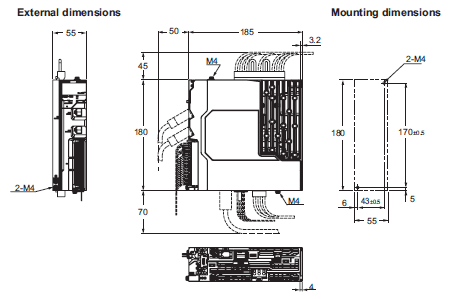

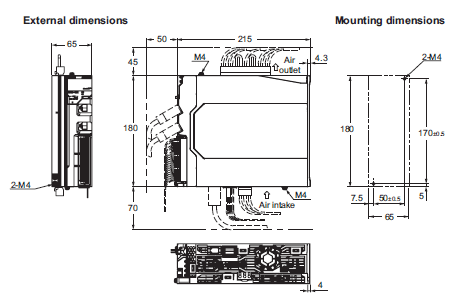

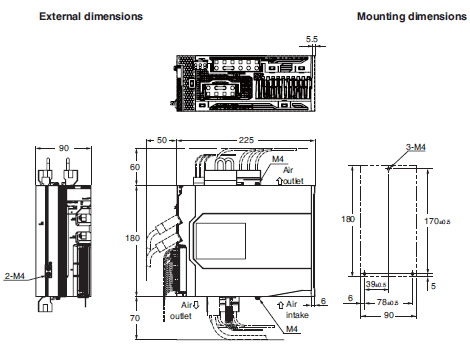

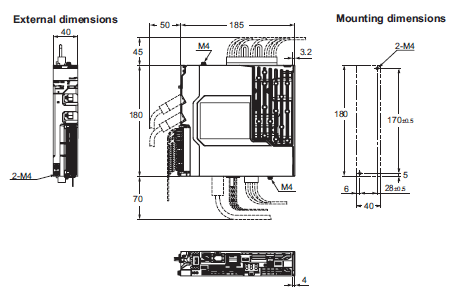

AC Servo Drives with Built-in EtherCAT Communications [1S-series]

Single-phase 100 VAC: R88D-1SN01L-ECT (100 W)
Single-phase/3-phase 200 VAC: R88D-1SN01H-ECT/-1SN02H-ECT (100 to 200 W)

R88M-1[] / R88D-1SN[]-ECT Dimensions 2

Single-phase 100 VAC: R88D-1SN02L-ECT (200 W)
Single-phase/3-phase 200 VAC: R88D-1SN04H-ECT (400 W)

R88M-1[] / R88D-1SN[]-ECT Dimensions 3

Single-phase 100 VAC: R88D-1SN04L-ECT (400 W)
Single-phase/3-phase 200 VAC: R88D-1SN08H-ECT (750 W)
3-phase 200 VAC: R88D-1SN10H-ECT (1 kW)

R88M-1[] / R88D-1SN[]-ECT Dimensions 4

Single-phase/3-phase 200 VAC: R88D-1SN15H-ECT (1.5 kW)
3-phase 200 VAC: R88D-1SN20H-ECT/-1SN30H-ECT (2 to 3 kW)
3-phase 400 VAC: R88D-1SN06F-ECT/-1SN10F-ECT/-1SN15F-ECT/-1SN20F-ECT/-1SN30F-ECT (600 W to 3 kW)

R88M-1[] / R88D-1SN[]-ECT Dimensions 5

AC Servomotors [1S-series]

3,000-r/min Servomotors (100 V and 200 V)

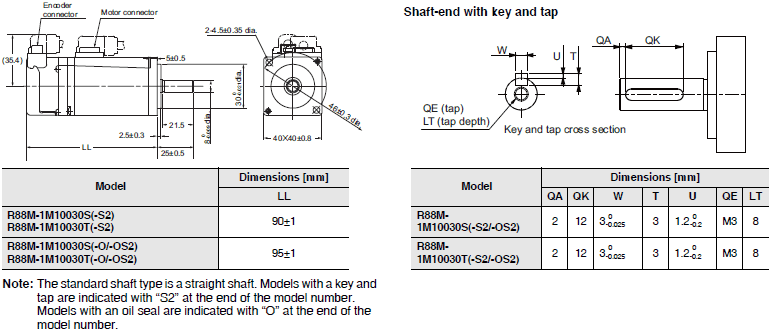

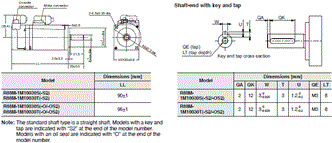

100 W (without Brake)
R88M-1M10030S(-O/-S2/-OS2)
R88M-1M10030T(-O/-S2/-OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 8

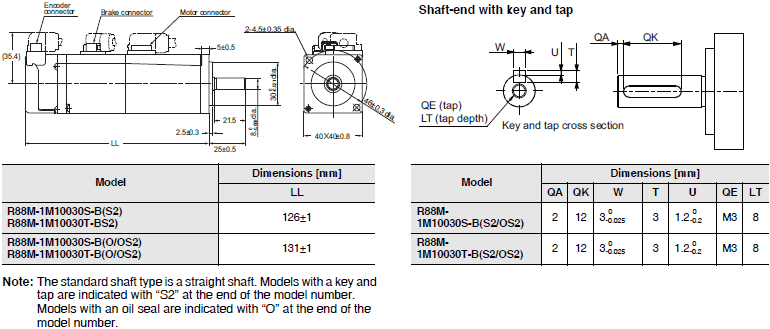

100 W (with Brake)
R88M-1M10030S-B(O/S2/OS2)
R88M-1M10030T-B(O/S2/OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 9

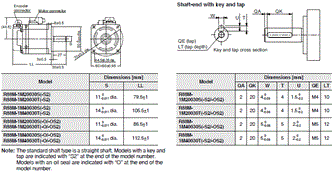

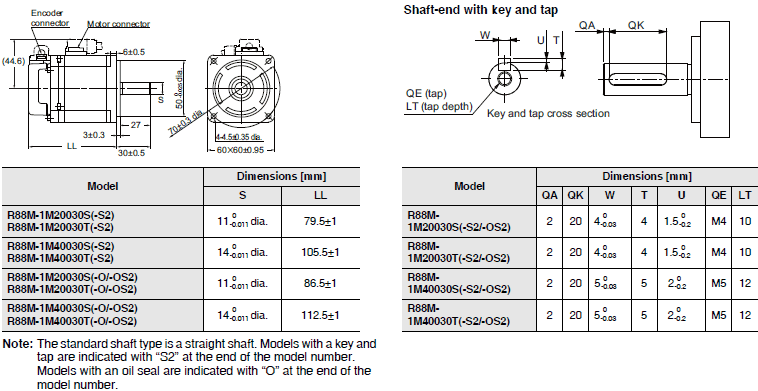

200 W/400 W (without Brake)
R88M-1M20030S(-O/-S2/-OS2)/R88M-1M20030T(-O/-S2/-OS2)
R88M-1M40030S(-O/-S2/-OS2)/R88M-1M40030T(-O/-S2/-OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 10

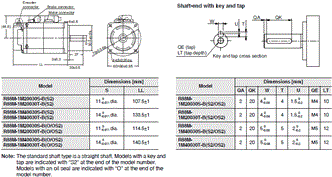

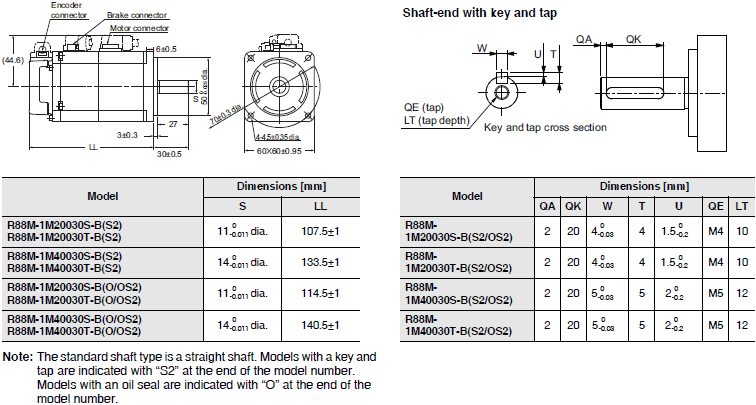

200 W/400 W (with Brake)
R88M-1M20030S-B(O/S2/OS2)/R88M-1M20030T-B(O/S2/OS2)
R88M-1M40030S-B(O/S2/OS2)/R88M-1M40030T-B(O/S2/OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 11

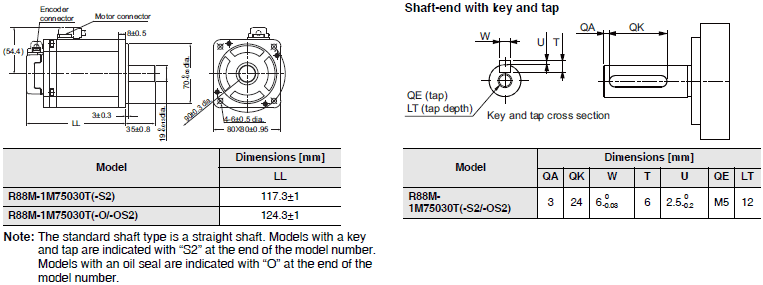

750 W (without Brake)
R88M-1M75030T(-O/-S2/-OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 12

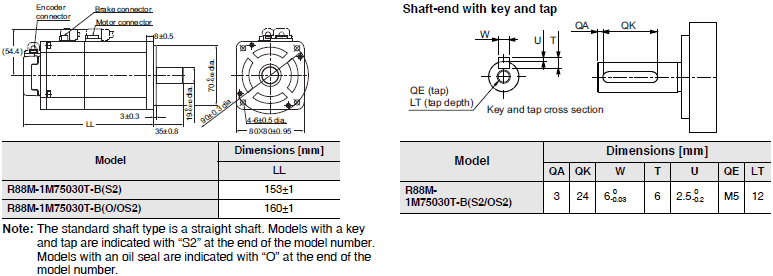

750 W (with Brake)
R88M-1M75030T-B(O/S2/OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 13

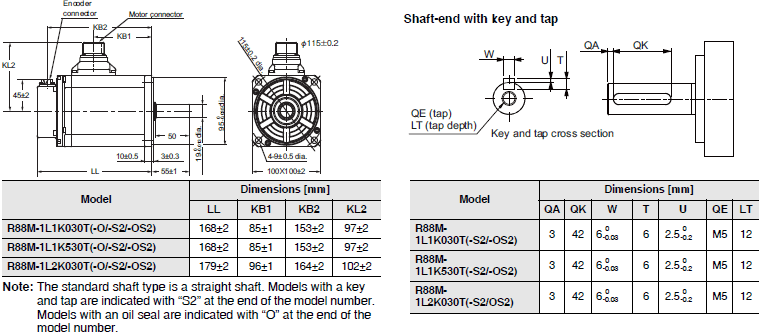

1 kW/1.5 kW/2 kW (without Brake)
R88M-1L1K030T(-O/-S2/-OS2)/R88M-1L1K530T(-O/-S2/-OS2)/
R88M-1L2K030T(-O/-S2/-OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 14

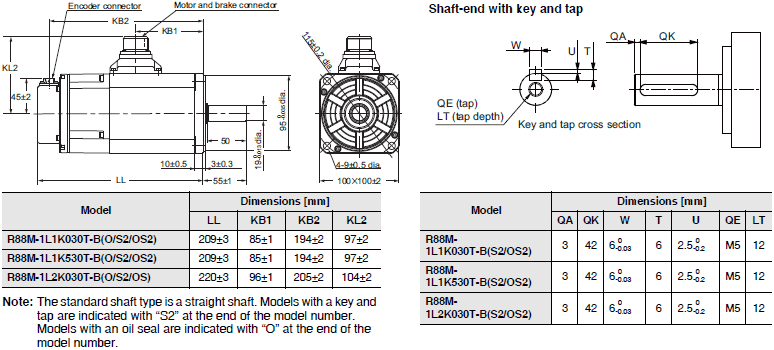

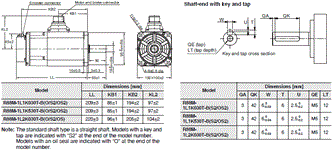

1 kW/1.5 kW/2 kW (with Brake)
R88M-1L1K030T-B(O/S2/OS2)/R88M-1L1K530T-B(O/S2/OS2)/
R88M-1L2K030T-B(O/S2/OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 15

3 kW (without Brake)
R88M-1L3K030T(-O/-S2/-OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 16

3 kW (with Brake)
R88M-1L3K030T-B(O/S2/OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 17

3,000-r/min Servomotors (400 V)

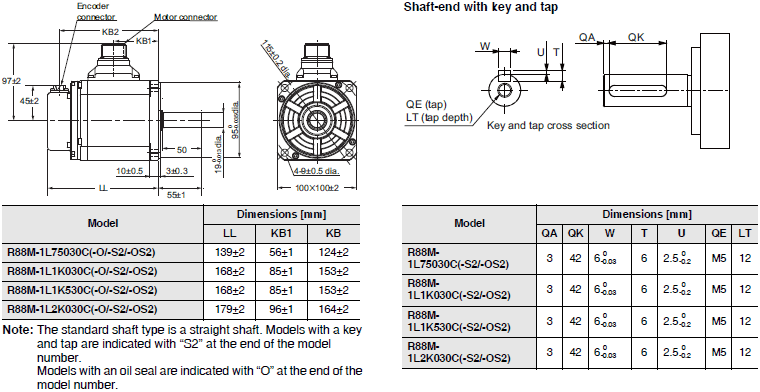

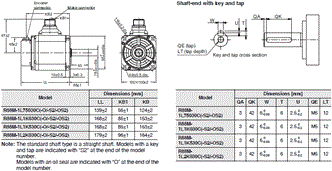

750 W/1 kW/1.5 kW/2 kW (without Brake)
R88M-1L75030C(-O/-S2/-OS2)/R88M-1L1K030C(-O/-S2/-OS2)
R88M-1L1K530C(-O/-S2/-OS2)/R88M-1L2K030C(-O/-S2/-OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 19

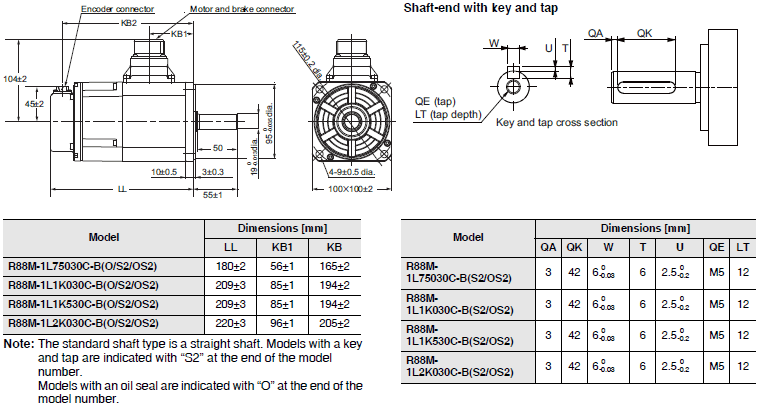

750 W/1 kW/1.5 kW/2 kW (with Brake)
R88M-1L75030C-B(O/S2/OS2)/R88M-1L1K030C-B(O/S2/OS2)
R88M-1L1K530C-B(O/S2/OS2)/R88M-1L2K030C-B(O/S2/OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 20

3 kW (without Brake)
R88M-1L3K030C(-O/-S2/-OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 21

3 kW (with Brake)
R88M-1L3K030C-B(O/S2/OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 22

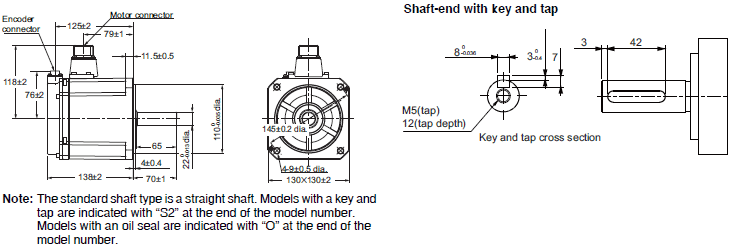

2,000-r/min Servomotors (200 V)

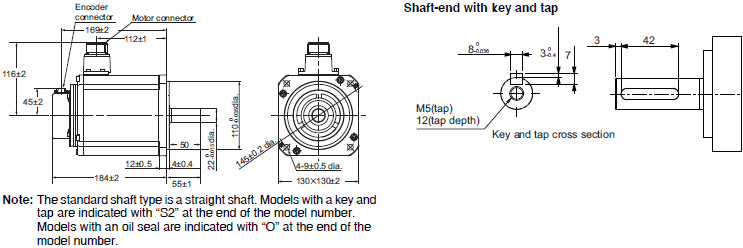

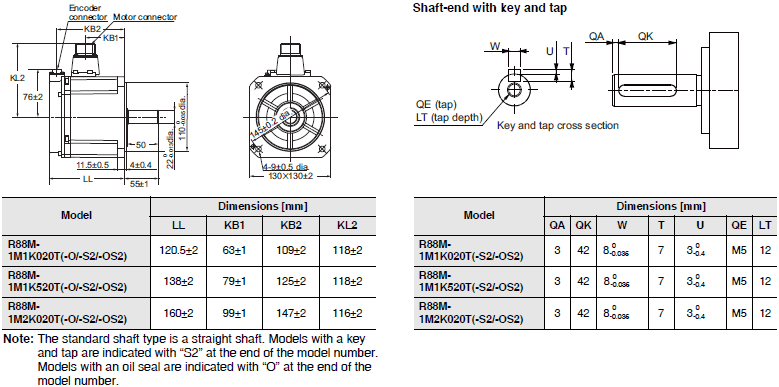

1 kW/1.5 kW/2 kW (without Brake)
R88M-1M1K020T(-O/-S2/-OS2)
R88M-1M1K520T(-O/-S2/-OS2)
R88M-1M2K020T(-O/-S2/-OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 24

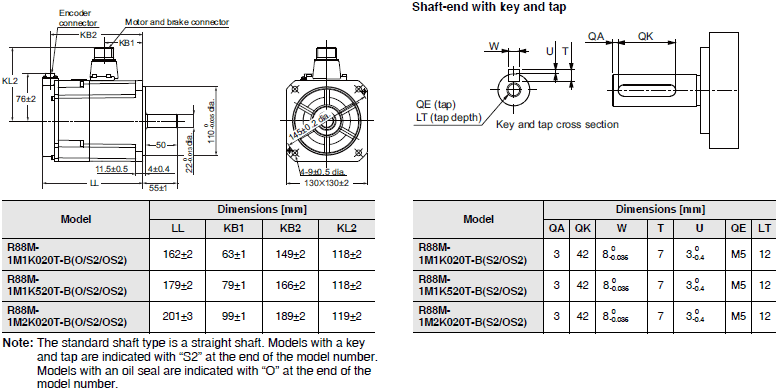

1 kW/1.5 kW/2 kW (with Brake)
R88M-1M1K020T-B (O/S2/OS2)
R88M-1M1K520T-B(O/S2/OS2)
R88M-1M2K020T-B(O/S2/OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 25

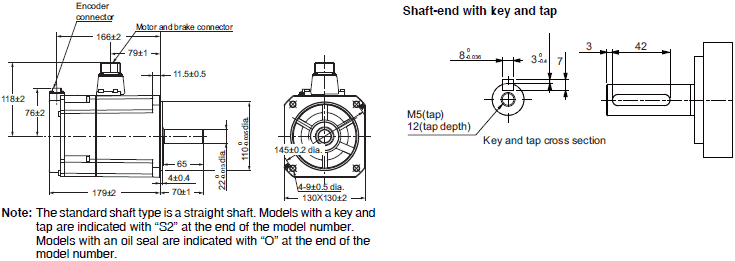

3 kW (without Brake)
R88M-1M3K020T(-O/-S2/-OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 26

3 kW (with Brake)
R88M-1M3K020T-B(O/S2/OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 27

2,000-r/min Servomotors (400 V)

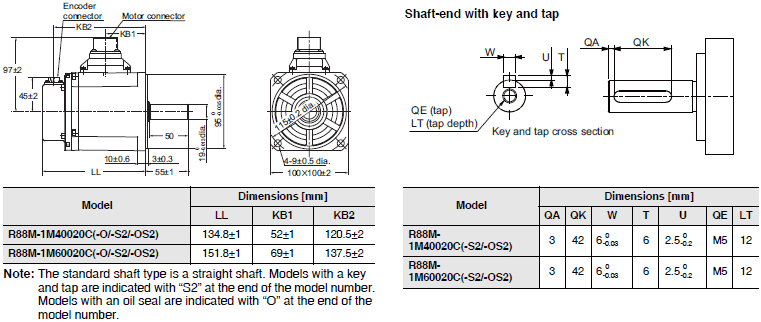

400 W/600 W (without Brake)
R88M-1M40020C(-O/-S2/-OS2)/R88M-1M60020C(-O/-S2/-OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 29

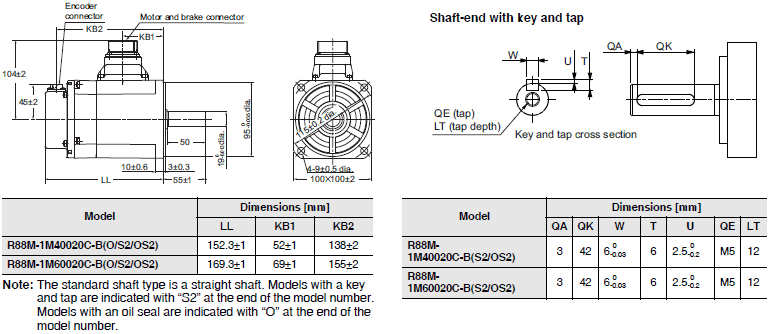

400 W/600 W (with Brake)
R88M-1M40020C-B(O/S2/OS2)/R88M-1M60020C-B(O/S2/OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 30

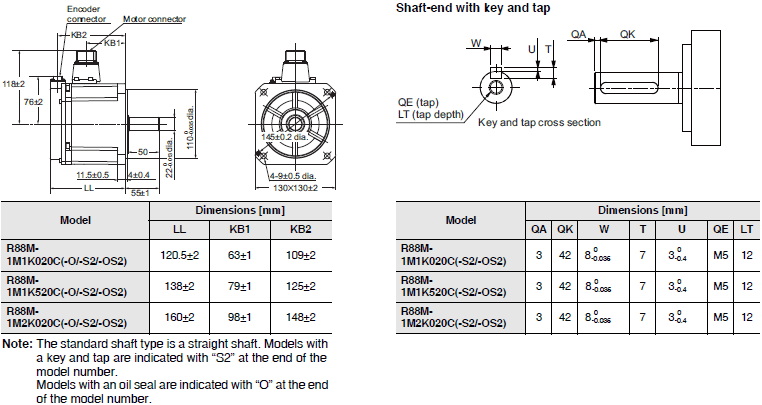

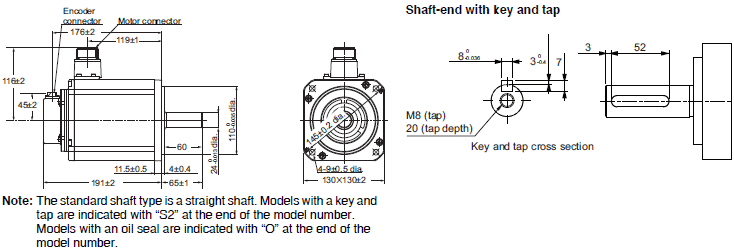

1 kW/1.5 kW/2 kW (without Brake)
R88M-1M1K020C(-O/-S2/-OS2)
R88M-1M1K520C(-O/-S2/-OS2)
R88M-1M2K020C(-O/-S2/-OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 31

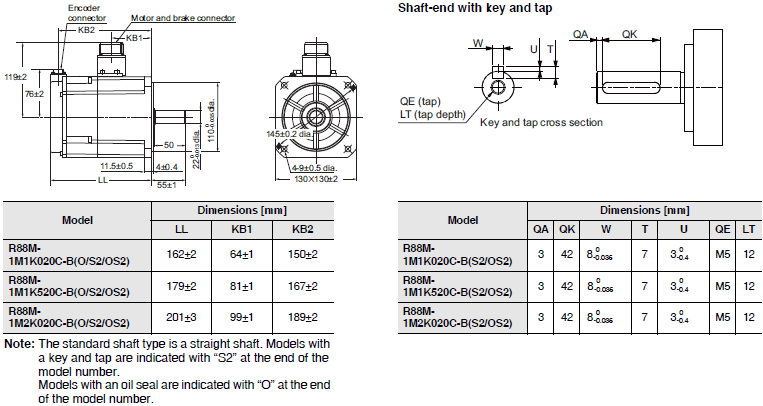

1 kW/1.5 kW/2 kW (with Brake)
R88M-1M1K020C-B(O/S2/OS2)
R88M-1M1K520C-B(O/S2/OS2)
R88M-1M2K020C-B(O/S2/OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 32

3 kW (without Brake)
R88M-1M3K020C(-O/-S2/-OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 33

3 kW (with Brake)
R88M-1M3K020C-B(O/S2/OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 34

1,000-r/min Servomotors (200 V)

900 W (without Brake)
R88M-1M90010T(-O/-S2/-OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 36

900 W (with Brake)
R88M-1M90010T-B(O/S2/OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 37

2 kW (without Brake)
R88M-1M2K010T(-O/-S2/-OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 38

2 kW (with Brake)
R88M-1M2K010T-B(O/S2/OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 39

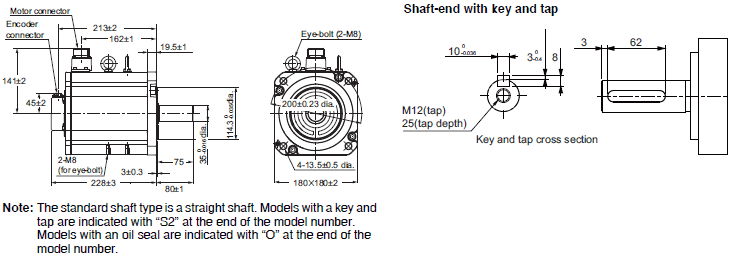

3 kW (without Brake)
R88M-1M3K010T(-O/-S2/-OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 40

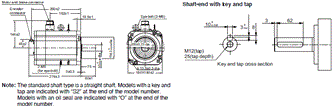

3 kW (with Brake)
R88M-1M3K010T-B(O/S2/OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 41

1,000-r/min Servomotors (400 V)

900 W (without Brake)
R88M-1M90010C(-O/-S2/-OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 43

900 W (with Brake)
R88M-1M90010C-B(O/S2/OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 44

2 kW (without Brake)
R88M-1M2K010C(-O/-S2/-OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 45

2 kW (with Brake)
R88M-1M2K010C-B(O/S2/OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 46

3 kW (without Brake)
R88M-1M3K010C(-O/-S2/-OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 47

3 kW (with Brake)
R88M-1M3K010C-B(O/S2/OS2)

R88M-1[] / R88D-1SN[]-ECT Dimensions 48

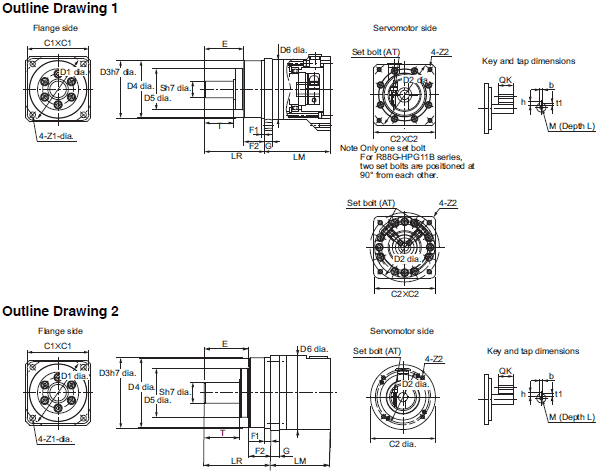

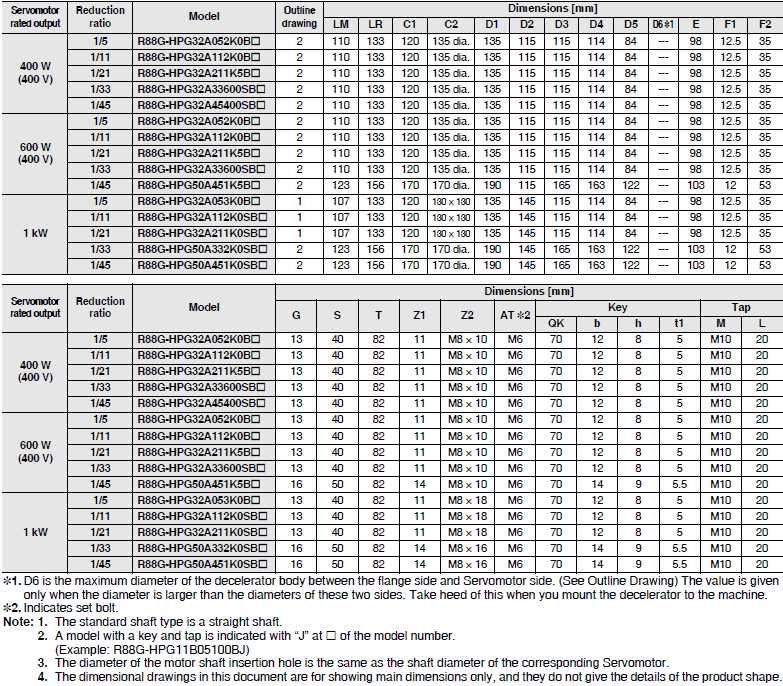

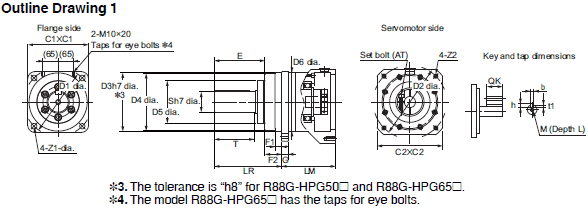

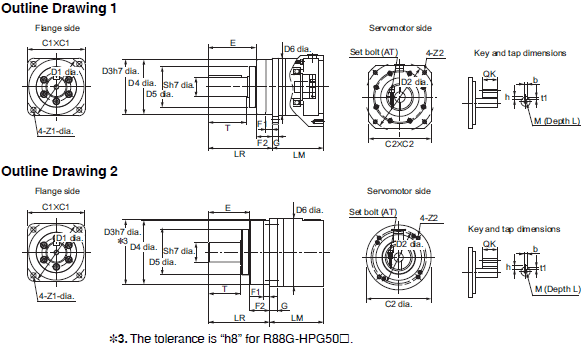

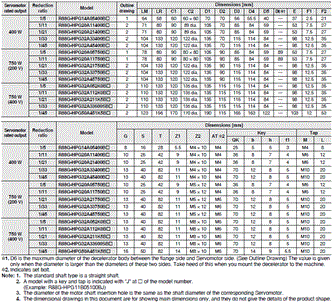

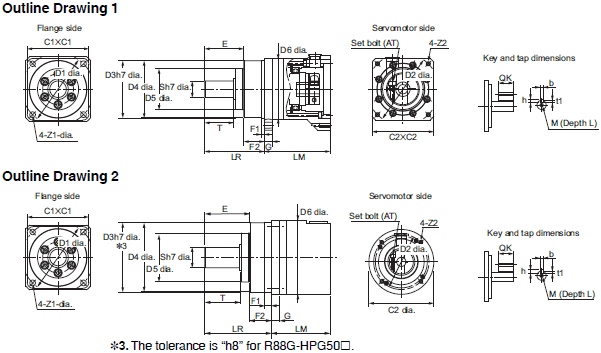

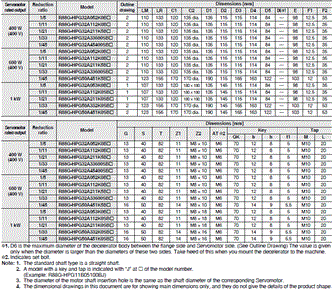

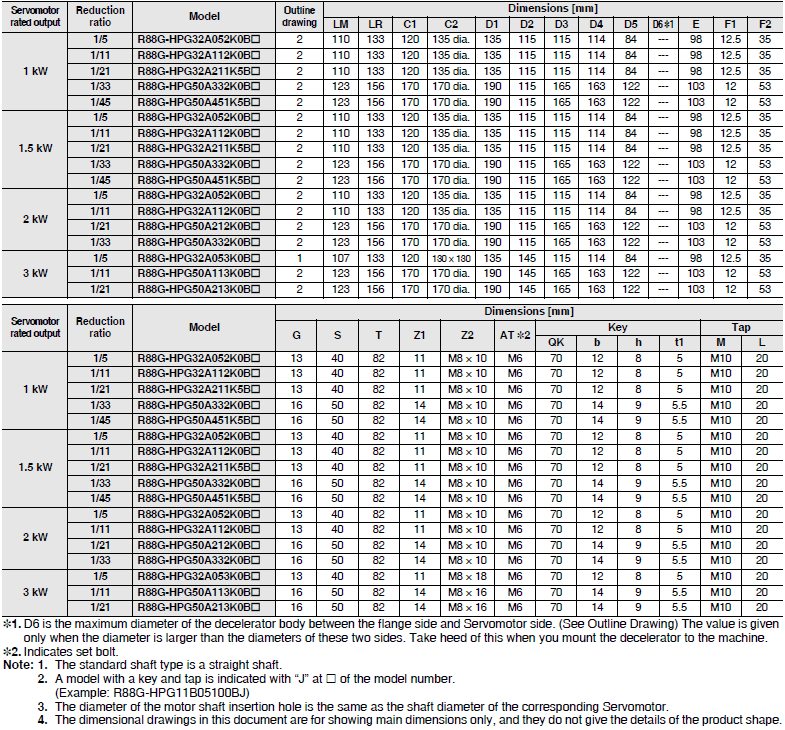

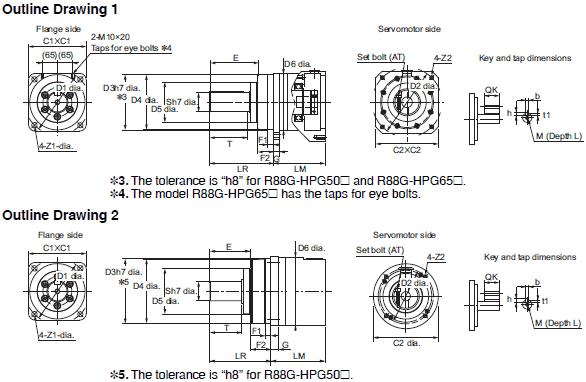

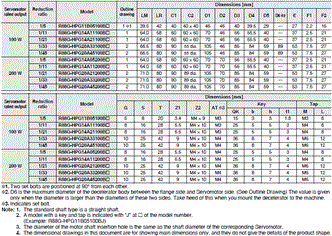

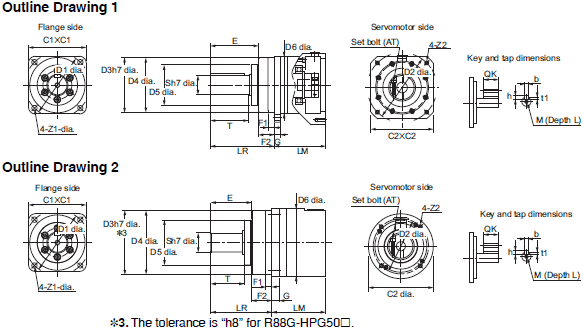

Decelerator AC Servo System [1S-series]

Backlash: 3 Arcminutes Max.

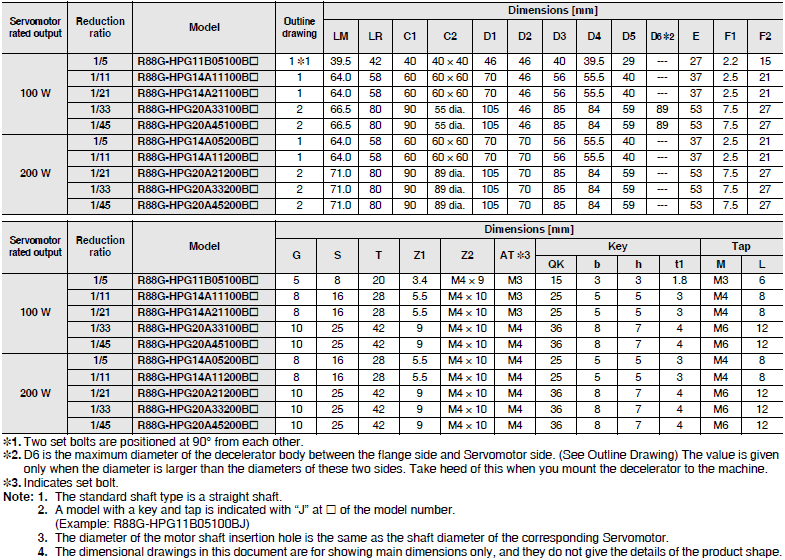

For 3,000-r/min Servomotors (100 to 200 W)

R88M-1[] / R88D-1SN[]-ECT Dimensions 51
R88M-1[] / R88D-1SN[]-ECT Dimensions 52

For 3,000-r/min Servomotors (400 to 750 W)

R88M-1[] / R88D-1SN[]-ECT Dimensions 53
R88M-1[] / R88D-1SN[]-ECT Dimensions 54

For 3,000-r/min Servomotors (1 to 3 kW)

R88M-1[] / R88D-1SN[]-ECT Dimensions 55
R88M-1[] / R88D-1SN[]-ECT Dimensions 56

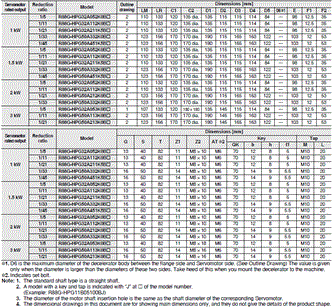

For 2,000-r/min Servomotors (400 W to 1 kW)

R88M-1[] / R88D-1SN[]-ECT Dimensions 57
R88M-1[] / R88D-1SN[]-ECT Dimensions 58

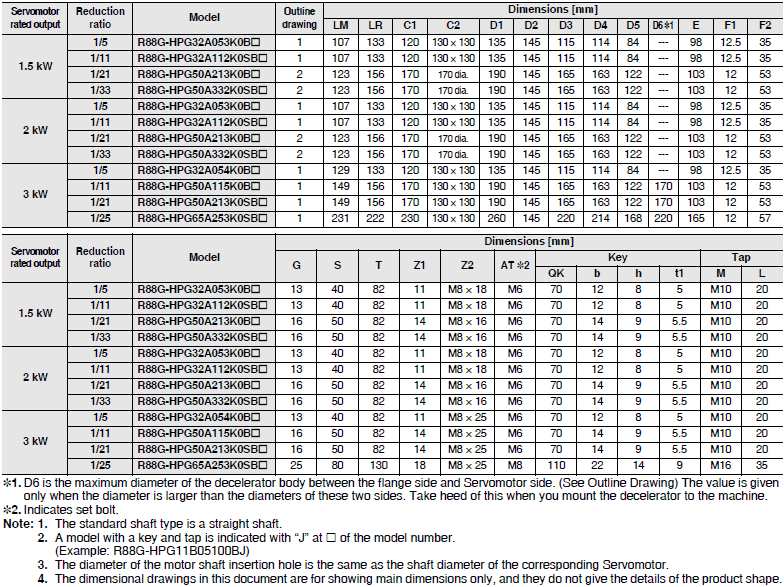

For 2,000-r/min Servomotors (1.5 to 3 kW)

R88M-1[] / R88D-1SN[]-ECT Dimensions 59
R88M-1[] / R88D-1SN[]-ECT Dimensions 60

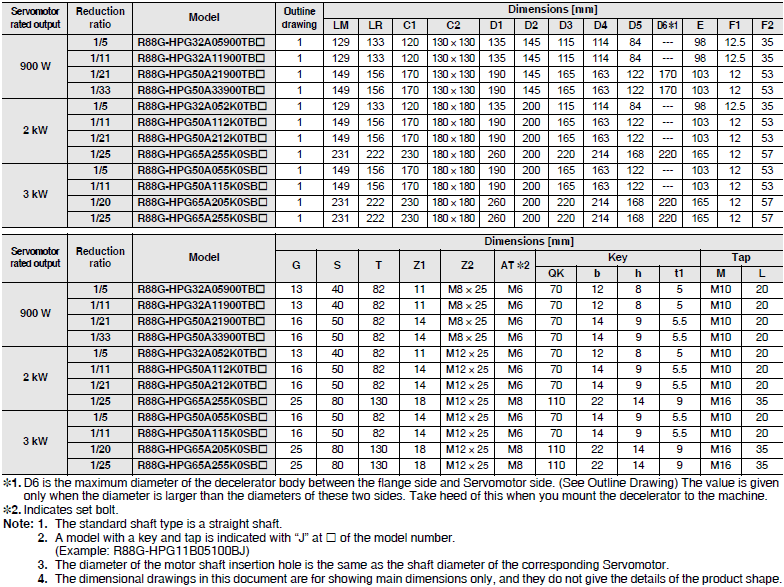

For 1,000-r/min Servomotors (900 W to 3 kW)

R88M-1[] / R88D-1SN[]-ECT Dimensions 61
R88M-1[] / R88D-1SN[]-ECT Dimensions 62

last update: September 01, 2016
