XW5T-P
DIN Track Push-in Terminal Blocks
Our Value Design Products Increase the Value of Your Control Panels. Push-in Plus Terminal Blocks to Downsize Control Panels and Save Work.
Item list of XW5T-P
about this Product Family
Related Contents
- Power Supplies / In Addition
- Wiring Systems
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: October 20, 2016
Caution: All units are in millimeters unless otherwise indicated.

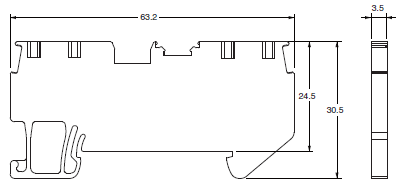

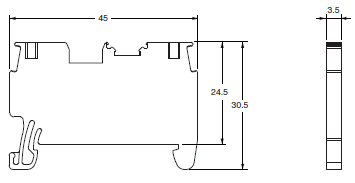

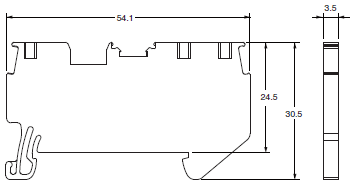

DIN Track Terminal Blocks

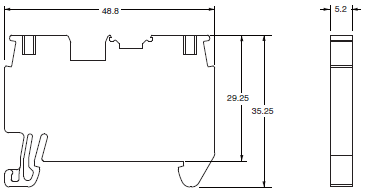

XW5T-P1.5-1.1-1(BL)/XW5G-P1.5-1.1-1

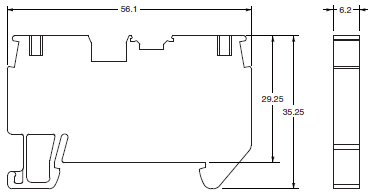

XW5T-P2.5-1.1-1(BL)/XW5G-P2.5-1.1-1
XW5T-P1.5-1.2-1(BL)/XW5G-P1.5-1.2-1
XW5T-P4.0-1.1-1(BL)/XW5G-P4.0-1.1-1

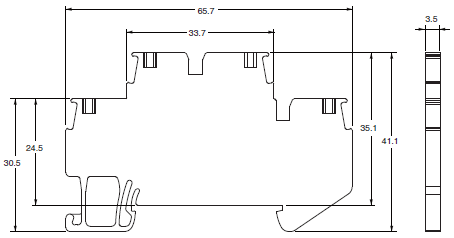

XW5T-P1.5-2.2-1(BL)/XW5G-P1.5-2.2-1
XW5T-P1.5-1.1-2(BL)/XW5G-P1.5-1.1-2
Short Bars

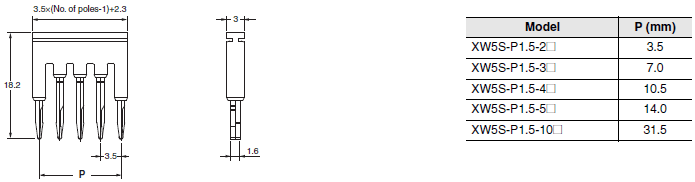

XW5S-P1.5-[]

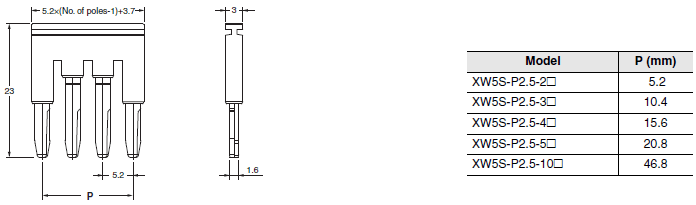

XW5S-P2.5-[]

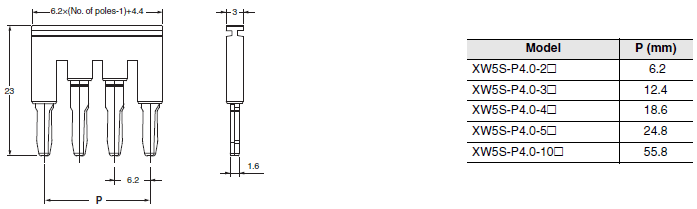

XW5S-P4.0-[]

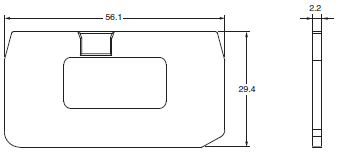

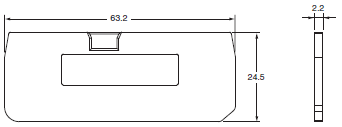

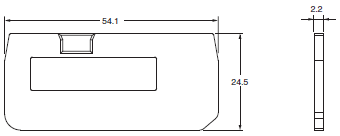

End Cover

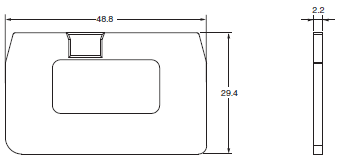

XW5E-P1.5-1.1-1
XW5E-P2.5-1.1-1
XW5E-P1.5-1.2-1
XW5E-P4.0-1.1-1

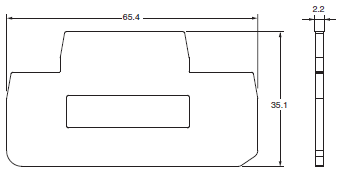

XW5E-P1.5-2.2-1
XW5E-P1.5-1.1-2
End Brackets/Separator Plates

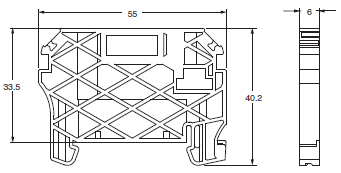

XW5Z-EP6 (End Brackets)

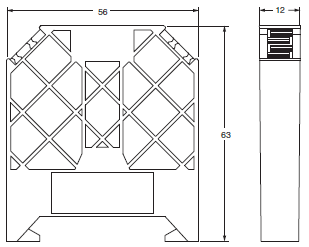

XW5Z-EP12 (Separator Plates)
last update: October 20, 2016
