D5B
Mechanical Touch Switch
Detects Objects in Multiple Directions with High Sensitivity, Ideal for Robotics
about this Product Family
Related Contents
- Limit Switches
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: November 12, 2012
Caution: All units are in millimeters unless otherwise indicated.

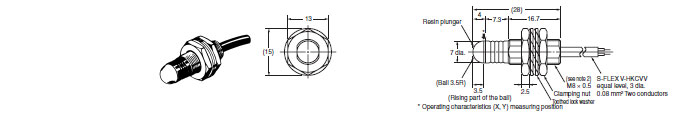

M5 Type
D5B-501[]
D5B-502[]
D5B-551[]

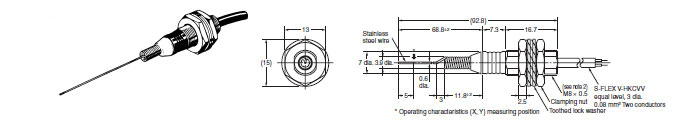

M8 Type
D5B-801[]
D5B-802[]
D5B-851[]

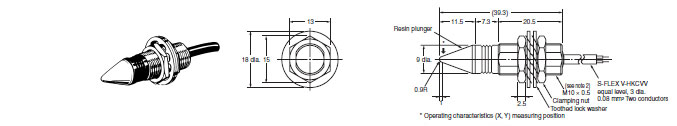

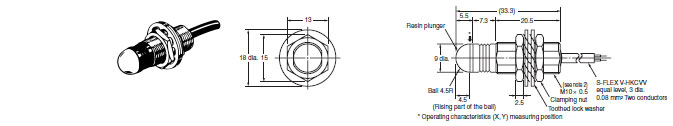

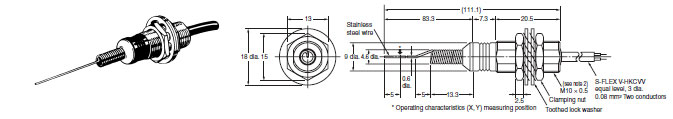

M10 Type
D5B-101[]
D5B-151[]
D5B-102[]
D5B-153[]
Note: 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
2. The threads of the case are not standard; 0.5-mm pitch. Therefore standard tapping to the case is not possible
for mounting.
2. The threads of the case are not standard; 0.5-mm pitch. Therefore standard tapping to the case is not possible
for mounting.

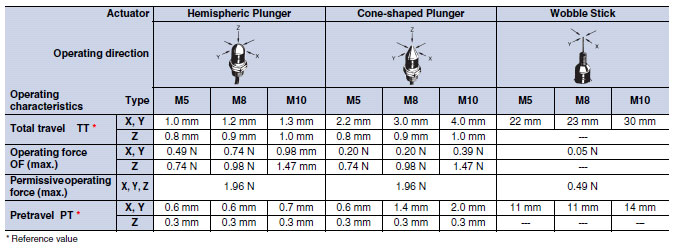

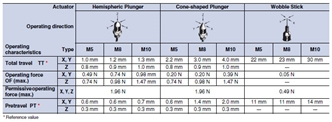

Operating Characteristics
