NA Series
Programmable Terminal
The Omron Sysmac HMI enables faster, more efficient control and monitoring - and a more natural, proactive relationship between operator and machine. Wide screen models: 7, 9, 12 and 15 inches
about this Product Family
Related Contents
- Automation Systems
- Programmable Terminals
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: October 11, 2016
Performance Specifications
Display
| Item | Specification | ||||
|---|---|---|---|---|---|
| NA5-15W | NA5-12W | NA5-9W | NA5-7W | ||
| Display panel
*1 |
Display device | TFT LCD | |||
| Screen size | 15.4 inches | 12.1 inches | 9.0 inches | 7.0 inches | |
| Resolution | 1,280 × 800 dots (horizontal ✕ vertical) | 800 × 480 dots (horizontal ✕ vertical) | |||
| Colors | 16,770,000 colors (24 bit full colors) | ||||
| Effective display
area |
331 × 207 mm
(horizontal ✕ vertical) |
261 × 163 mm
(horizontal ✕ vertical) |
197 × 118 mm
(horizontal ✕ vertical) |
152 × 91 mm
(horizontal ✕ vertical) |
|
| View angles | Left: 60°, Right: 60°, Top: 60°, Bottom: 60° | ||||
| Backlight *2 | Life | 50,000 hours min. *3 | |||
| Brightness
adjustment |
200 levels | ||||
| Front panel
indicators *4 |
RUN | Lit green: Normal operation Lit red: Error | |||
*1. There may be some defective pixels in the display. This is not a fault as long as the numbers of defective light and
dark pixels fall within the following standard ranges.
dark pixels fall within the following standard ranges.
| Model | Standard range |
|---|---|
| NA5-15W[][][][]
NA5-12W[][][][] NA5-9W[][][][] NA5-7W[][][][] |
Number of light and dark pixels: 10 or less. (There must not be 3 consecutive light/dark pixels.) |
*2. The backlight can be replaced at an OMRON maintenance base.
*3. This is the estimated time before brightness is reduced by half at room temperature and humidity. The life expectancy
is drastically shortened if Programmable Terminal is used at high temperatures.
*4. The brightness of the front panel indicators is also adjustable when you adjust the brightness of the backlight.
*3. This is the estimated time before brightness is reduced by half at room temperature and humidity. The life expectancy
is drastically shortened if Programmable Terminal is used at high temperatures.
*4. The brightness of the front panel indicators is also adjustable when you adjust the brightness of the backlight.
Operation
| Item | Specification | |||
|---|---|---|---|---|
| NA5-15W | NA5-12W | NA5-9W | NA5-7W | |
| Touch panel | Method: Analog resistance membrane (pressure sensitive) | |||
| Resolution: 16,384 ✕ 16,384 | ||||
| Life: 1,000,000 operations | ||||
| Function keys * | 3 inputs (capacitance inputs) | |||
* Each function key has blue indicator. The brightness of the function key indicators is also adjustable when you adjust
the brightness of the backlight.
the brightness of the backlight.
Data Capacity
| Item | Specification | |||
|---|---|---|---|---|
| NA5-15W | NA5-12W | NA5-9W | NA5-7W | |
| User data capacity | 256 MB | |||
External Interfaces
| Item | Specifications (Same for all models.) | |
|---|---|---|
| Ethernet
ports |
Applications | Port 1: Connecting to anything other than the Sysmac Studio, e.g., device
connections and VNC clients Port 2: Connecting to the Sysmac Studio in addition to the applications of port 1. |
| Number of ports | 2 ports | |
| Compliant standards | IEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-TX), and IEEE 802.3ab
(1000Base-T) |
|
| Transmission media | Shielded twisted-pair (STP) cable: Category 5, 5e, or higher | |
| Transmission distance | 100 m | |
| Connector | RJ-45 8P8C modular connector | |
| USB host
ports |
Applications | USB Memory Device, keyboard, or mouse |
| Number of ports | 2 ports | |
| Compliant standards | USB 2.0 | |
| Transmission distance | 5 m max. | |
| Connector | Type-A connector | |
| USB slave
port |
Applications | Sysmac Studio connection |
| Number of ports | 1 port | |
| Compliant standards | USB 2.0 | |
| Transmission distance | 5 m max. | |
| Connector | Type-B connector | |
| Serial port
* |
Applications | Device Connection |
| Number of ports | 1 port | |
| Compliant standards | RS-232C | |
| Transmission distance | 15 m max. | |
| Connector | D-DUB 9-pin female connector | |
| SD Memory
Card slot |
Applications | To transfer or store the project or to store log data. |
| Number of slots | 1 slot | |
| Compliant standards | SD/SDHC | |
| Expansion
Unit connector * |
Applications | Expansion Unit |
| Quantity | 1 | |
* The serial port and Expansion Unit connector are for future expansion.
General Specifications
| Item | Specification | |||
|---|---|---|---|---|
| NA5-15W | NA5-12W | NA5-9W | NA5-7W | |
| Rated supply voltage | 24 VDC | |||
| Allowable power
supply voltage range |
19.2 to 28.8 VDC (24 VDC ±20%) | |||
| Allowable
momentary power interruption time |
Operation for momentary power interruption is not specified. | |||
| Power consumption | 47 W max. | 45 W max. | 40 W max. | 35 W max. |
| Ambient operating
temperature |
0 to 50°C *1 *2 | |||
| Ambient storage
temperature |
-20 to +60°C *3 | |||
| Ambient operating
humidity |
10 to 90% *2
Must be no condensation. |
|||
| Atmosphere | Must be free from corrosive gases. | |||
| Pollution degree | 2 or less: JIS B 3502, IEC 61131-2 | |||
| Noise immunity | 2 kV on power supply line (Conforms to IEC 61000-4-4.) | |||
| Vibration resistance
(during operation) |
Conforms to IEC 60068-2-6.
5 to 8.4 Hz with 3.5 mm half amplitude and 8.4 to 150 Hz with 9.8 m/s2 for 100 minutes each in X, Y, and Z directions (Time coefficient of 10 minutes ✕ coefficient factor of 10 = total time of 100 min.) |
|||
| Shock resistance
(during operation) |
Conforms to IEC 60028-2-27.
147 m/s2 3 times each in X, Y, and Z directions |
|||
| Dimensions | 420 ✕ 291 ✕ 69 mm
(W ✕ H ✕ D) |
340 ✕ 244 ✕ 69 mm
(W ✕ H ✕ D) |
290 ✕ 190 ✕ 69 mm
(W ✕ H ✕ D) |
236 ✕ 165 ✕ 69 mm
(W ✕ H ✕ D) |
| Panel cutout
dimensions |
392 +1,0 ✕
268 +1,0 mm (horizontal ✕ vertical) Panel thickness: 1.6 to 6.0 mm *4 |
310 +1,0 ✕
221 +1,0 mm (horizontal ✕ vertical) Panel thickness: 1.6 to 6.0 mm *4 |
261 +1,0 ✕
166 +1,0 mm (horizontal ✕ vertical) Panel thickness: 1.6 to 6.0 mm *4 |
197 +0.5,0 ✕
141 +0.5,0 mm (horizontal ✕ vertical) Panel thickness: 1.6 to 6.0 mm *4 |
| Weight | 3.2 kg max. | 2.3 kg max. | 1.7 kg max. | 1.3 kg max. |
| Degree of
protection |
Front-panel controls: IP65 oil-proof type, UL Type 4X (at initial state)
To reinstall the NA Unit in a panel, contact your OMRON representative for replacement of the rubber packing. |
|||
| Battery life | Battery life: 5 years at 25°C
The RTC will be backed up for 5 days after the battery runs low. The RTC will be backed up by a super capacitor for 5 minutes after removing the old battery. (This assumes that the power is first turned ON for at least 5 minutes and then turned OFF.) |
|||
| International
standards *5 |
UL 508/CSA standard C22.2 No.142 *6
EMC Directive (2004/108/EC) EN 61131-2: 2007 Shipbuilding standards LR, DNV, and NK IP65 oil-proof, UL Type 4X *7 (front panel only) ANSI 12.12.01 Class 1 Division 2/CSA standard C22.2 No. 213-M1987 (R2013) RoHS Directive (2002/95/EC) KC Standards KN 61000-6-2: 2012-06 for EMS and KN 61000-6-4: 2012-06 for EMI RCM |
|||
*1. The ambient operating temperature is subject to the following restrictions, depending on the mounting angle.
• The ambient operating temperature is 0° to 40°C when the mounting angle is 0° or more and less than 45° to the horizontal.
• The ambient operating temperature is 0° to 50°C when the mounting angle is 45° or more and 90° or less to the horizontal.
• The ambient operating temperature is 0° to 50°C when the mounting angle is 90° or more and 135° or less to the horizontal.

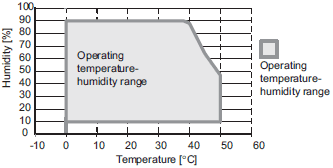

*2. Use the Programmable Terminal within the following temperature and humidity ranges.

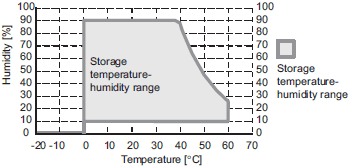

*3. Store the Programmable Terminal within the following temperature and humidity ranges.
*4. When the NA-[]WATW01 High-pressure Waterproof Attachment is used, the panel thickness is between 1.6 to 4.5 mm.
*5. Check with your OMRON representative or refer to the following OMRON website for the latest information on the
applicable standards for each model: www.ia.omron.com.
*6. Use power supply Class 2 to conform to UL Standards.
*7. Use the NA-[]WATW01 High-pressure Waterproof Attachment (sold separately) to conform to UL Type 4X.
Version Information
NA series and Programming Devices
| NA series | Corresponding unit versions/version | ||
|---|---|---|---|
| Model | NA system version | NJ/NX/NY-series Controller
NX1P2-[][][][] NJ501-[][][][] NY512-[][][][] NJ301-[][][][] NY532-[][][][] NJ101-[][][][] NX701-[][][][] |
Sysmac studio |
| NA5-15W
NA5-12W NA5-9W NA5-7W |
1.07 or later | NX1P2: 1.13 or later | 1.17 or higher |
| 1.06 or later | NY512: 1.12 or later
NY532: 1.12 or later |
1.17 or higher | |
| 1.02 or later | NX701: 1.10 or later
NJ101: 1.10 or later |
1.13 or higher | |
| 1.01 or later | NJ501: 1.01 or later
NJ501 Database Connection: 1.05 or later NJ301: 1.01 or later |
1.11 or higher | |
Supported Devices
| Manufacturer | Models | Connection method | Communications driver |
|---|---|---|---|
| OMRON | NX1P2-[][][][] NJ501-[][][][]
NY512-[][][][] NJ301-[][][][] NY532-[][][][] NJ101-[][][][] NX701-[][][][] |
Built-in EtherNet/IP port | Ethernet |
| CJ2H-CPU64/65/66/67/68-EIP
CJ2M-CPU31/32/33/34/35 |
Built-in EtherNet/IP port | CIP Ethernet | |
| CJ2H-CPU64/65/66/67/68-EIP
CJ2M-CPU31/32/33/34/35 |
CJ1W-EIP21 | ||
| CJ2H-CPU64/65/66/67/68-EIP
CJ2M-CPU31/32/33/34/35 |
Built-in EtherNet/IP port | FINS Ethernet | |
| CJ1H-CPU65H/66H/67H
CJ1H-CPU65H/66H/67H-R CJ1G-CPU42H/43H/44H/45H CJ1M-CPU11/12/13/21/22/23 CJ2H-CPU64/65/66/67/68(-EIP) CJ2M-CPU11/12/13/14/15 CJ2M-CPU31/32/33/34/35 |
CJ1W-ETN21
CJ1W-EIP21 |
