![ZC-[]55](../../../images/l_332-13-119080-198x198.jpg)
Item list of ZC-[]55

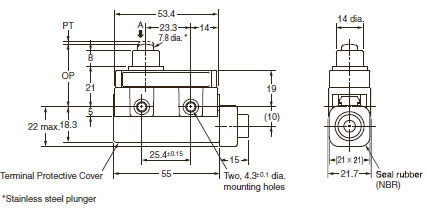

![ZC-[]55 Dimensions 1](../../../images/ZC-%5b%5d55_dm_113-111733.jpg)

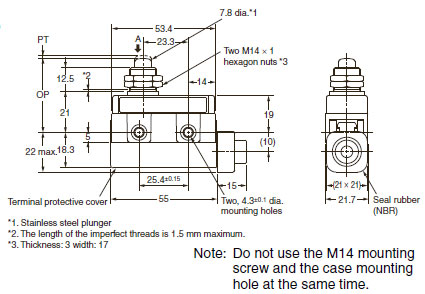

![ZC-[]55 Dimensions 2](../../../images/ZC-%5b%5d55_dm_213-111735.jpg)

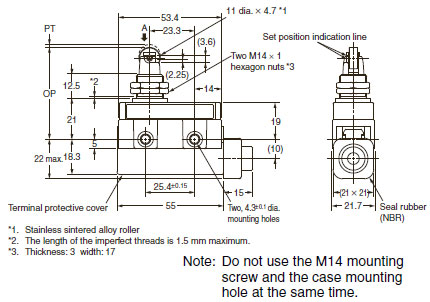

![ZC-[]55 Dimensions 3](../../../images/ZC-%5b%5d55_dm_313-111737.jpg)

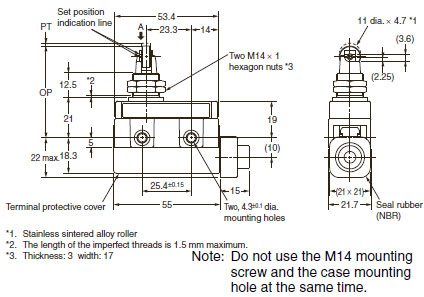

![ZC-[]55 Dimensions 4](../../../images/ZC-%5b%5d55_dm_413-111739.jpg)

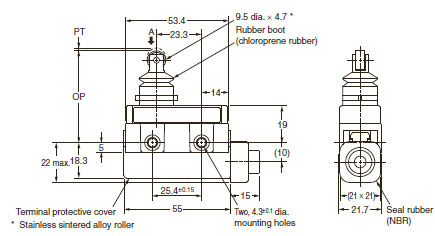

![ZC-[]55 Dimensions 5](../../../images/ZC-%5b%5d55_dm_513-111741.jpg)

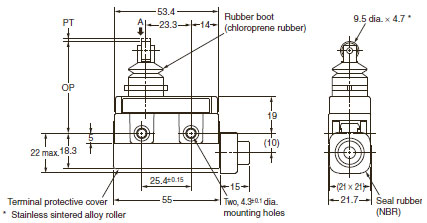

![ZC-[]55 Dimensions 6](../../../images/ZC-%5b%5d55_dm_613-111743.jpg)

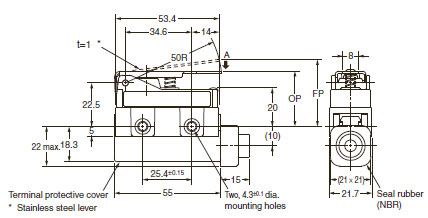

![ZC-[]55 Dimensions 7](../../../images/ZC-%5b%5d55_dm_713-111745.jpg)
![ZC-[]55 Dimensions 8](../../../images/ZC-%5b%5d55_dm_813-111747.jpg)

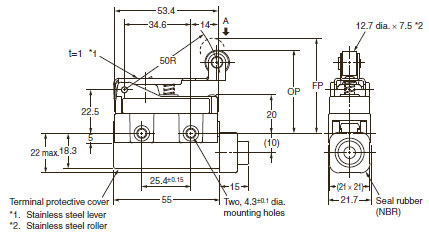

![ZC-[]55 Dimensions 9](../../../images/ZC-%5b%5d55_dm_913-111749.jpg)

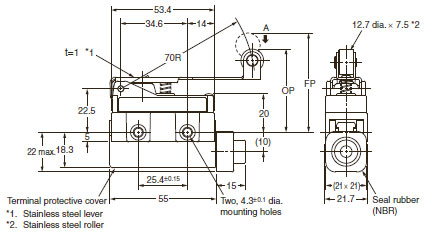

![ZC-[]55 Dimensions 10](../../../images/ZC-%5b%5d55_dm_1013-111751.jpg)

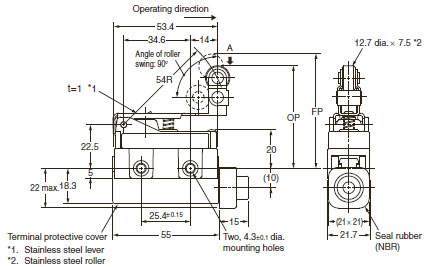

![ZC-[]55 Dimensions 11](../../../images/ZC-%5b%5d55_dm_1113-111753.jpg)

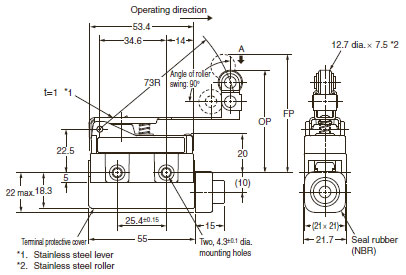

![ZC-[]55 Dimensions 12](../../../images/ZC-%5b%5d55_dm_1213-111755.jpg)
Note: 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
2. Operating characteristics are for when the Switch is operated from direction A.
2. Operating characteristics are for when the Switch is operated from direction A.

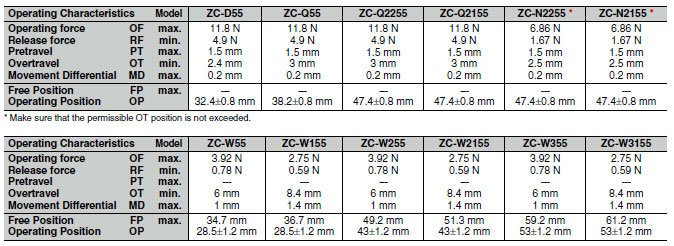

![ZC-[]55 Dimensions 14](../../../images/ZC-%5b%5d55_dm_1313-111758.jpg)
