SHL
Enclosed Switch
Subminiature Enclosed Switch (Measuring 48 x 17.5 x 45 mm) with High Sealing Property
about this Product Family
Related Contents
- Limit Switches
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: November 12, 2012
Caution: All units are in millimeters unless otherwise indicated.
Switches

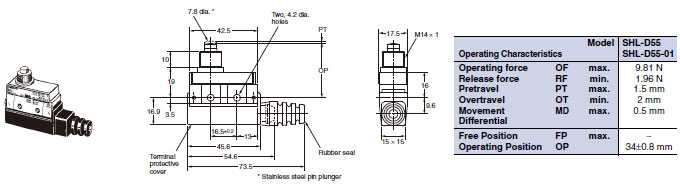

Plunger
SHL-D55
SHL-D55-01

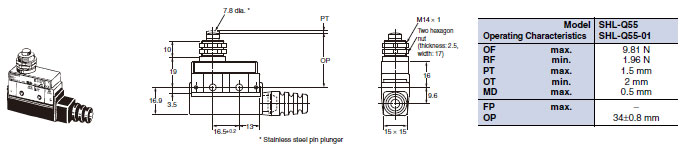

Panel Mount Plunger
SHL-Q55
SHL-Q55-01

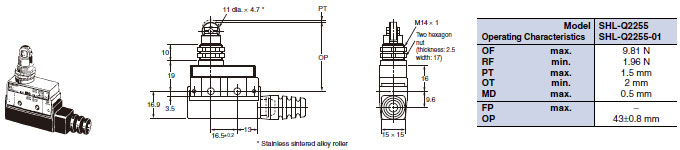

Panel Mount Roller Plunger
SHL-Q2255
SHL-Q2255-01

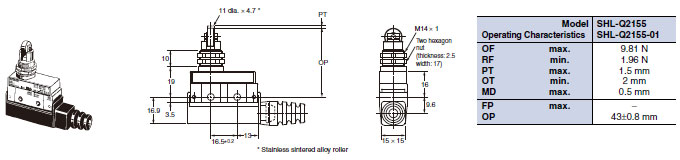

Panel Mount Crossroller Plunger
SHL-Q2155
SHL-Q2155-01

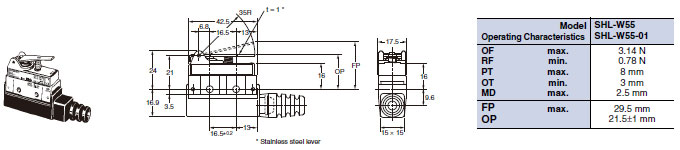

Short Hinge Lever
SHL-W55
SHL-W55-01

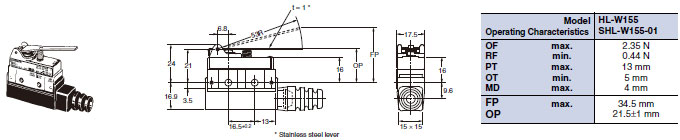

Hinge Lever
SHL-W155
SHL-W155-01

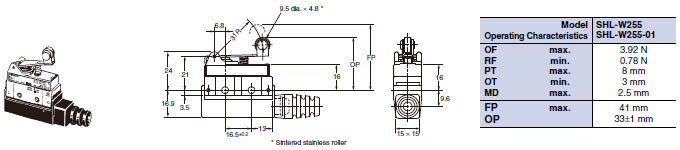

Short Hinge Roller Lever
SHL-W255
SHL-W255-01

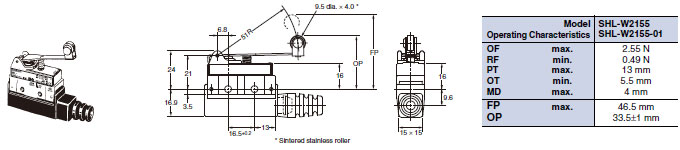

Hinge Roller Lever
SHL-W2155
SHL-W2155-01

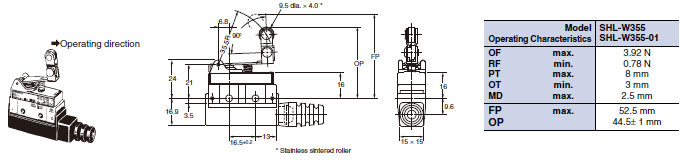

One-way Action Short Hinge Roller Lever
SHL-W355
SHL-W355-01

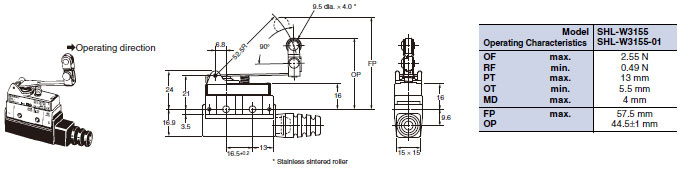

One-way Action Hinge Roller Lever
SHL-W3155
SHL-W3155-01
Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
