S8VK-G
Switch Mode Power Supply (15/30/60/120/240/480-W Models)
Reliable and Easy Operation-Worldwide Power Supply. Resistant in tough environments. Easy and fast installation. The most compact class on the market.
about this Product Family
Related Contents
- Power Supplies / In Addition
- Power Supplies
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: July 01, 2016
Caution: All units are in millimeters unless otherwise indicated.
S8VK-G015[][] (15 W)
S8VK-G030[][] (30 W)

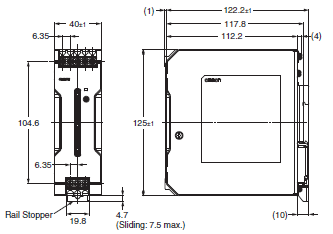

S8VK-G060[][] (60 W)

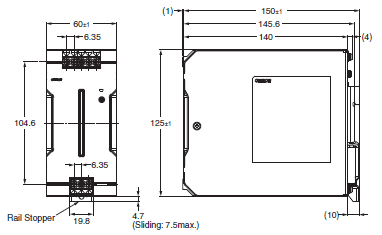

S8VK-G12024 (120 W)

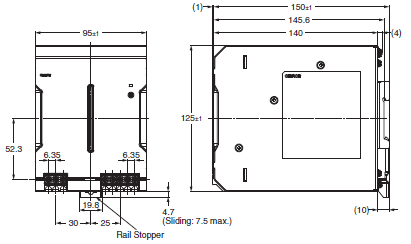

S8VK-G240[][] (240 W)
S8VK-G480[][] (480 W)
DIN Rail (Order Separately)

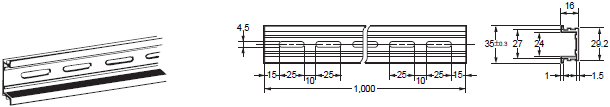

Mounting Rail (Material: Aluminum)
PFP-100N
PFP-50N
Mounting Rail (Material: Aluminum)
PFP-100N2

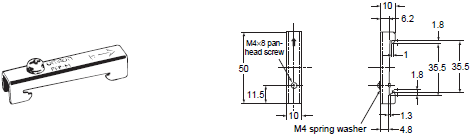

End Plate
PFP-M

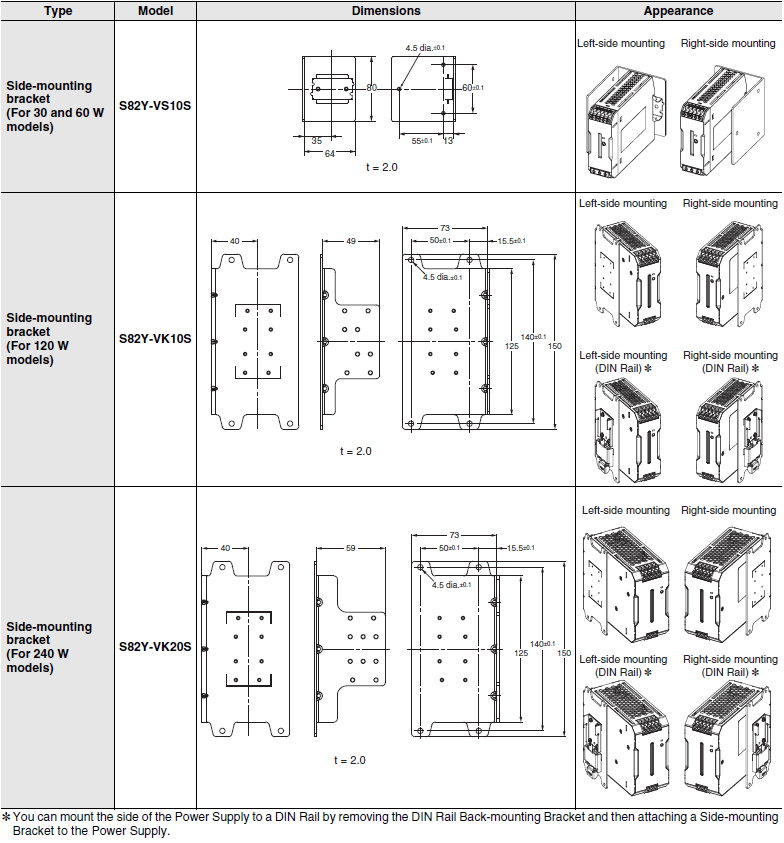

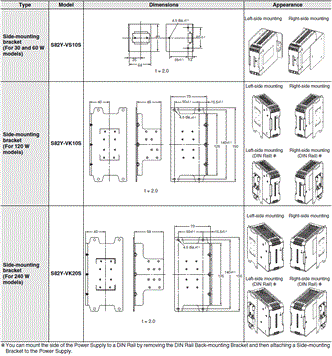

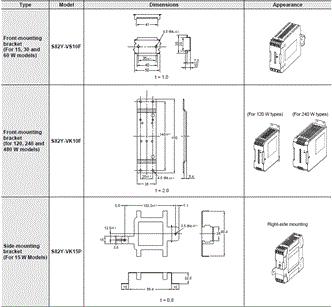

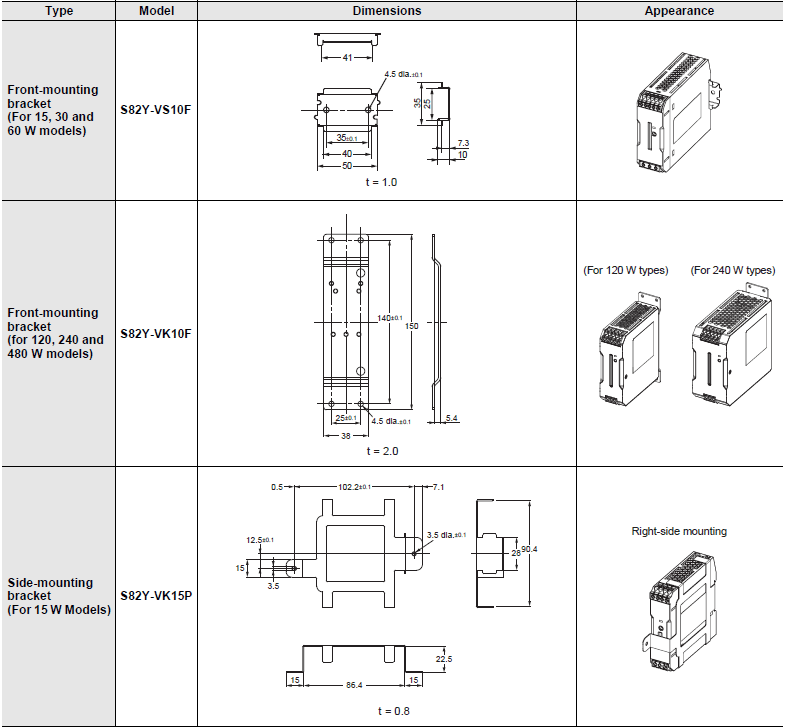

Mounting Brackets
