ZS Series
Smart Sensors 2D CMOS Laser Type
High-precision Displacement Measurement Sensors Bringing Smart Sensors into New Fields.
Item list of ZS Series
about this Product Family
Related Contents
- Displacement / Measurement Sensors
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: March 07, 2013
Caution: All units are in millimeters unless otherwise indicated.

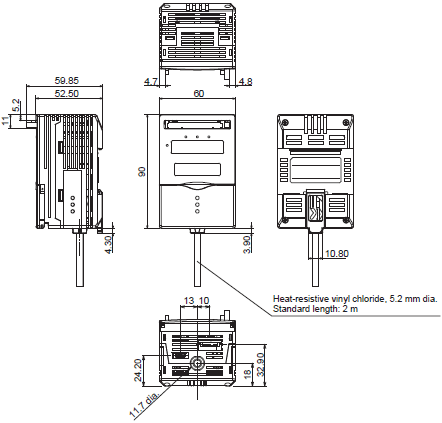

Sensor Controllers
ZS-HLDC[]1/LDC[]1
Multi-Controllers
ZS-MDC[]1
Data Storage Units
ZS-DSU[]1

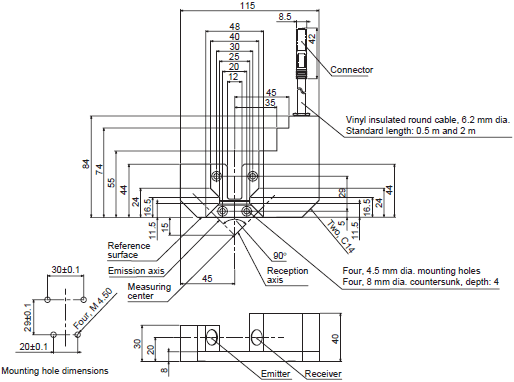

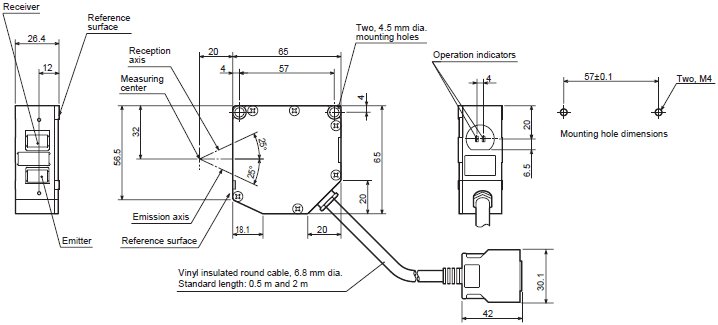

Sensor Heads
ZS-HLDS2T
ZS-HLDS5T/HLDS10

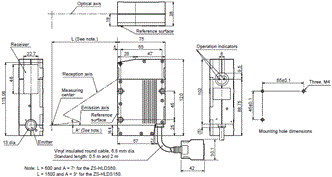

ZS-HLDS60/HLDS150
ZS-LD10GT
ZS-LD15GT
ZS-LD50/LD50S/LD80/LD130/LD200/LD350S

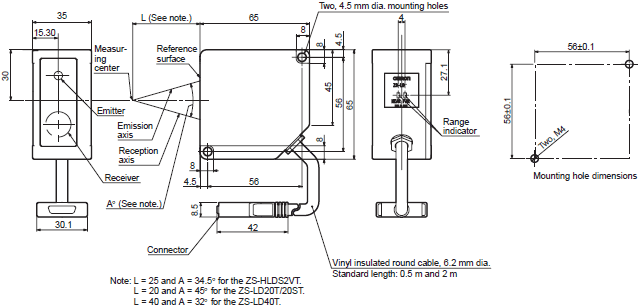

ZS-HLDS2VT/LD20T/LD20ST/LD40T

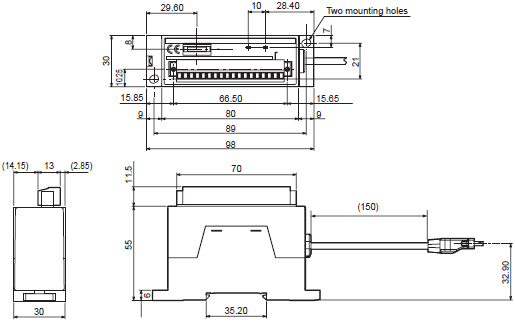

Realtime Parallel Output Unit
ZG-RPD[]1

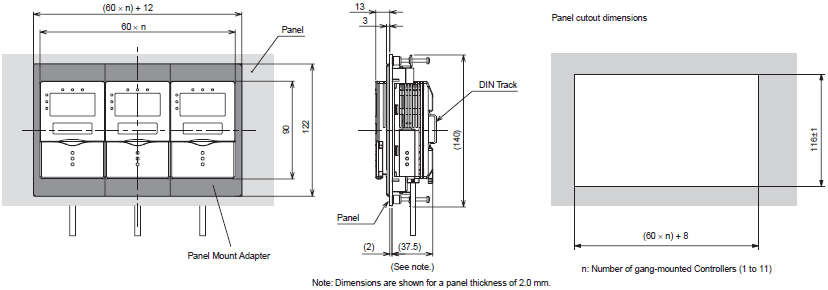

Panel Mount Adapter
ZS-XPM1/XPM2 (Dimensions for Panel Mounting)

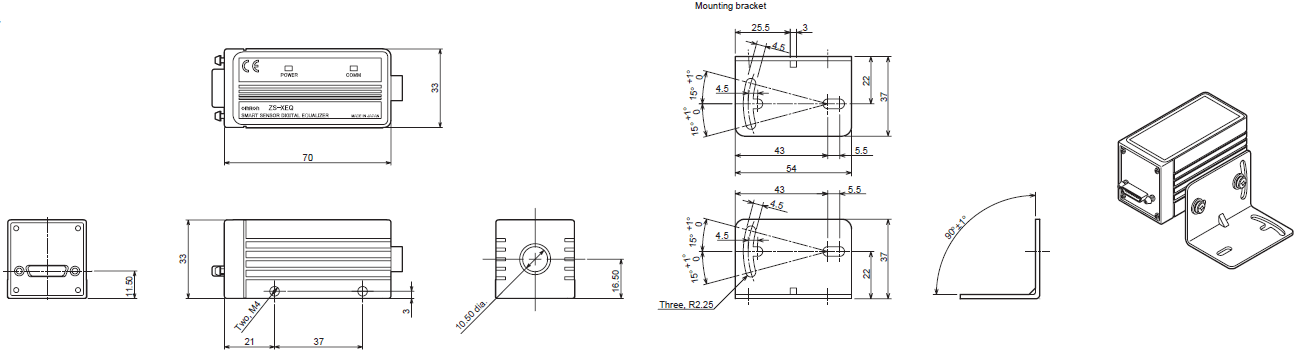

Digital Equalizer
ZS-XEQ
last update: March 07, 2013
