S8EX
Switch Mode Power Supply (15, 30, 50, 100, 150, and 240-W Models)
Newly Released High-capacity 240-W Models in S8EX-series Lineup Rated Output of 300 W for 200 VAC.* *From 170 to 264 VAC.
Item list of S8EX
about this Product Family
Related Contents
- Power Supplies / In Addition
- Power Supplies
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: May 23, 2013
Caution: All units are in millimeters unless otherwise indicated.
Power Supplies

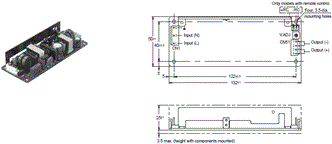

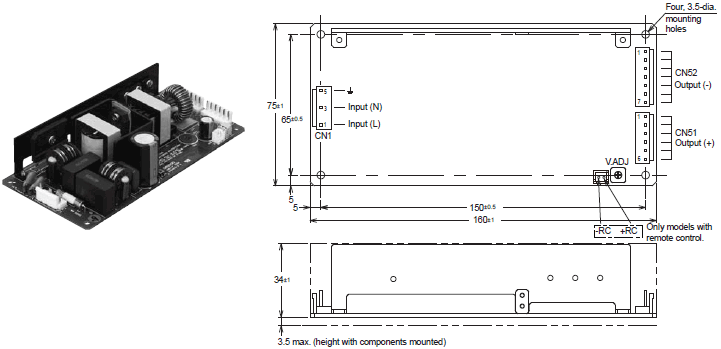

Open-frame Model

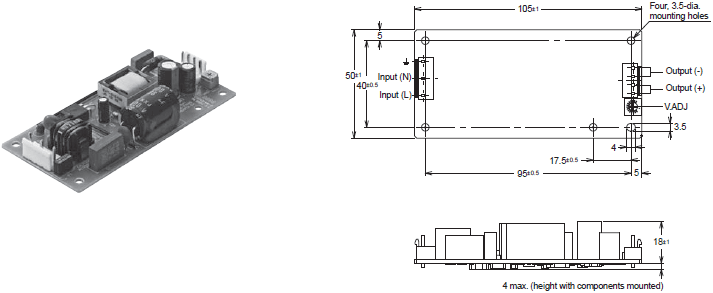

S8EX-N015[] (15 W)

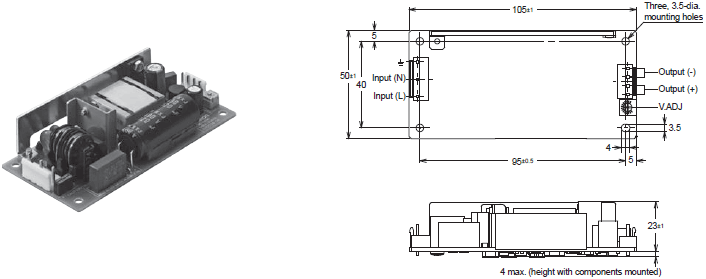

S8EX-N030[] (30 W)
S8EX-BP050[][] (50 W)

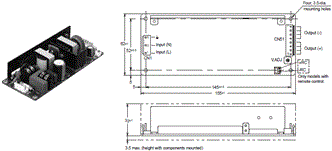

S8EX-[]P100[][] (100 W)
S8EX-[]P150[][] (150 W)

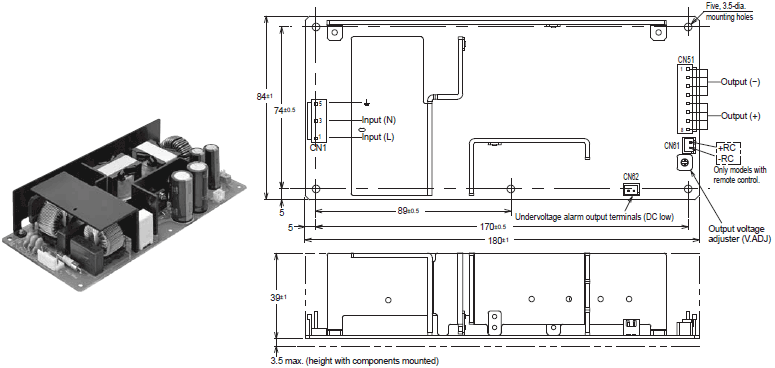

S8EX-[]BP240[][] (240 W)

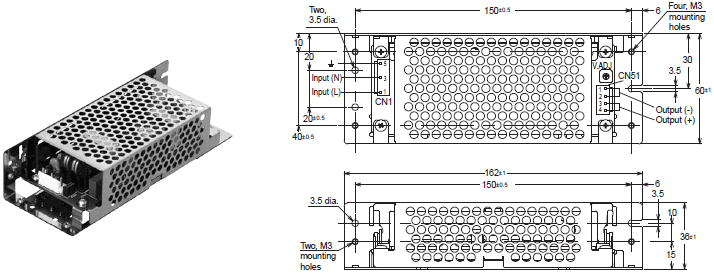

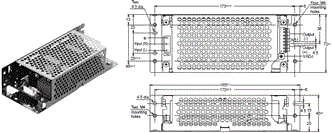

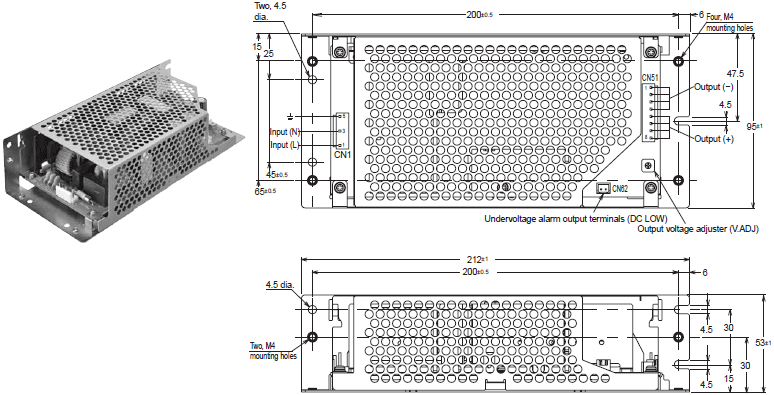

With chassis and cover

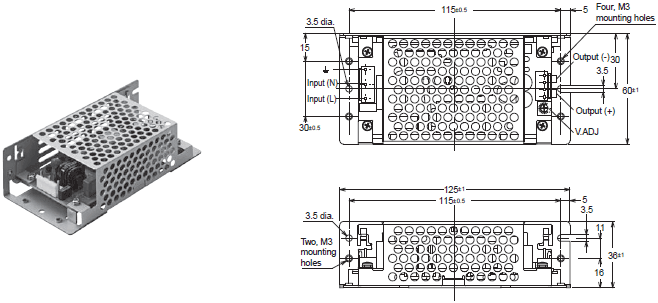

S8EX-N015[]L[] (15 W)
S8EX-N030[]L[] (30 W)

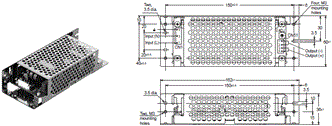

S8EX-BP050[]L[] (50 W)
S8EX-[]P100[]L[] (100 W)

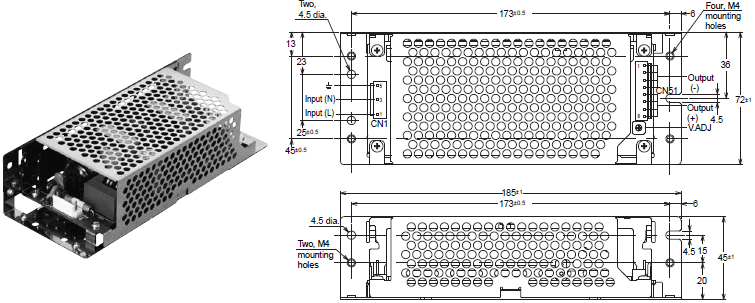

S8EX-[]P150[]L[] (150 W)

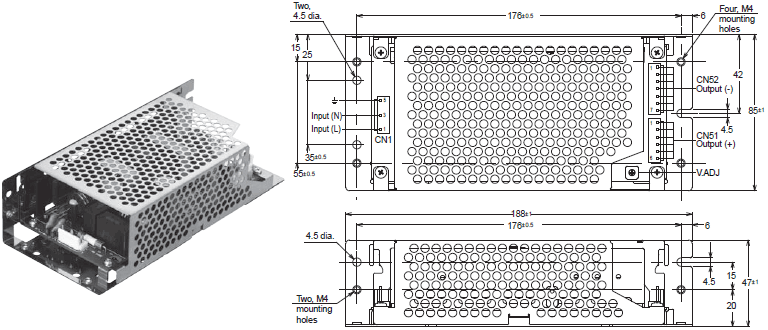

S8EX-BP240[]L[] (240 W)
last update: May 23, 2013
