GX-[]D16[]8 / []D32[]8
Digital I/O Terminal e-CON Connector Type
![GX-[]D16[]8 / []D32[]8](../../../images
/l_2952-13-118900-198x198.jpg)
Easy wiring using industry standard e-CON connectors. Special wiring tool is not necessary.
Item list of GX-[]D16[]8 / []D32[]8
about this Product Family
Related Contents
- Automation Systems
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: April 03, 2015
Caution: All units are in millimeters unless otherwise indicated.

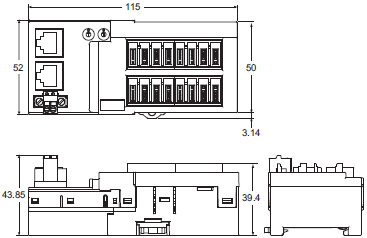

GX-ID1618/ID1628
![GX-[]D16[]8 / []D32[]8 Dimensions 1](../../../images
/2952_dm_113-119784.gif)
GX-OD1618/OD1628
GX-MD1618/MD1628
![GX-[]D16[]8 / []D32[]8 Dimensions 2](../../../images
/2952_dm_213-119785.gif)

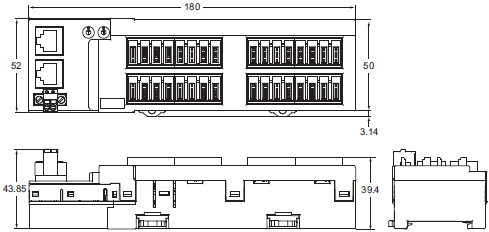

GX-ID3218/ID3228
![GX-[]D16[]8 / []D32[]8 Dimensions 3](../../../images
/2952_dm_313-119786.gif)

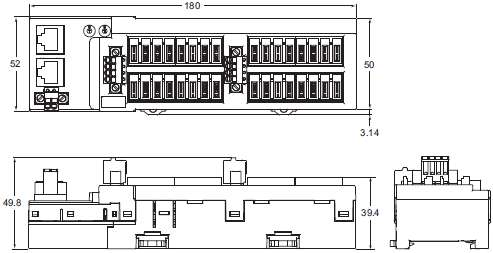

GX-OD3218/OD3228
![GX-[]D16[]8 / []D32[]8 Dimensions 4](../../../images
/2952_dm_413-119787.gif)

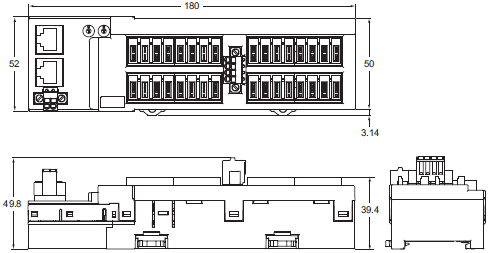

GX-MD3218/MD3228
![GX-[]D16[]8 / []D32[]8 Dimensions 5](../../../images
/2952_dm_513-119788.gif)
last update: April 03, 2015
