H7CZ
Digital Counter
Easy to Use and Easy to Read.
about this Product Family
Related Contents
- Control Components
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: December 19, 2013
Caution: All units are in millimeters unless otherwise indicated.
Counters
H7CZ-L8/-L8D1 (Flush Mounting/Surface Mounting Models)

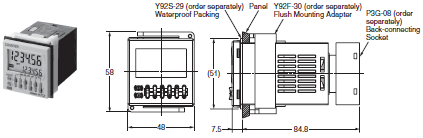

Dimensions with Flush Mounting Adapter
H7CZ-L8/-L8D1 (Adapter and Waterproof Packing Ordered Separately)
Panel Cutouts
Note: 1. The mounting panel thickness should be 1 to 5 mm.
2. To allow easier operation, it is recommended that Adapters be mounted so that the gap between sides with
hooks is at least 15 mm (i.e., with the panel cutouts separated by at least 60 mm).
3. It is possible to horizontally mount Timers side by side. Attach the Flush Mounting Adapters so that the surfaces
without hooks are on the sides of the Timers. If they are mounted side-by-side, water-resistance will be lost.
2. To allow easier operation, it is recommended that Adapters be mounted so that the gap between sides with
hooks is at least 15 mm (i.e., with the panel cutouts separated by at least 60 mm).
3. It is possible to horizontally mount Timers side by side. Attach the Flush Mounting Adapters so that the surfaces
without hooks are on the sides of the Timers. If they are mounted side-by-side, water-resistance will be lost.
Dimensions with Front Connecting Socket
* These dimensions depend on the kind of DIN Track. (Reference value)
