E3Z-LT / LR / LL
Compact Laser Photoelectric Sensor with Built-in Amplifier
Compact and Reliable Laser Photoelectric Sensor
about this Product Family
Related Contents
- Photoelectric Sensors
- Features
- Lineup
- Specifications
- Dimensions
- Application
- Catalog
last update: November 15, 2012
Caution: All units are in millimeters unless otherwise indicated.
Sensors
Through-beam *
Pre-wired Models
E3Z-LT61, E3Z-LT81
Through-beam *
Standard Connector Models
E3Z-LT66, E3Z-LT86
* Models numbers for Through-beam Sensors (E3Z-LT[][]) are for sets that include both the Emitter and Receiver.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3Z-LT61-L 2M),
the model number of the Receiver, by adding "-D" (example: E3Z-LT61-D 2M.) Refer to Ordering Information to
confirm model numbers for Emitter and Receivers.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3Z-LT61-L 2M),
the model number of the Receiver, by adding "-D" (example: E3Z-LT61-D 2M.) Refer to Ordering Information to
confirm model numbers for Emitter and Receivers.
Retro-reflective Models
Pre-wired Models
E3Z-LR61, E3Z-LR81
Retro-reflective Models
Standard Connector Models
E3Z-LR66, E3Z-LR86
BGS Models
Pre-wired Models
E3Z-LL61, E3Z-LL81
E3Z-LL63, E3Z-LL83

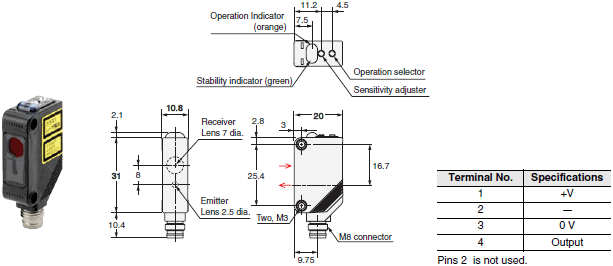

BGS Models
Standard M8 Connector Models
E3Z-LL66, E3Z-LL86
E3Z-LL68, E3Z-LL88
Accessories (Order Separately)
Slit
E39-S65A
Material
SUS301 stainless steel
Reflector
E39-R1
Materials
Reflective surface: Acrylic
Rear surface: ABS
Reflector
E39-R6
Materials
Reflective surface: Acrylic
Rear surface: ABS
Reflector
E39-R12
Note:Materials
Reflector: Polycarbonate (surface), Acrylic (interior)
Frame: ABS
last update: November 15, 2012
