Item list of M2P
The model numbers used to order sets of Units are given in the following tables. One set comprises the Display, Lamp, and Socket.
Building Automation
Industrial Automation
Power Automation & Safety
Bangladesh Distributor
M2P
Indicators
Large Rectangular-bodied Indicators
about this Product Family
Related Contents
- Push Buttons / Indicator Lamps
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: May 13, 2015
Ordering as a Set
M2PJ (Rectangular) Single Screen Models
| Case color | Black | Light gray | Display color symbol | |
|---|---|---|---|---|
| LED | 5 VDC | M2PJ-90A11-05E(1) | M2PJ-90A12-05E(1) | R O G W |
| 12 VDC | M2PJ-90A11-12E(1) | M2PJ-90A12-12E(1) | ||
| 24 VDC | M2PJ-90A11-24E(1) | M2PJ-90A12-24E(1) | ||
| Chameleon | 12 VDC | M2PJ-90AG1-12EK | M2PJ-90AG2-12EK | *1 |
| 24 VDC | M2PJ-90AG1-24EK | M2PJ-90AG2-24EK | ||
| Incandescent lamp | 6 VDC/VAC | M2PJ-90A11-06 | M2PJ-90A12-06 | *2 |
| 14 VDC/VAC | M2PJ-90A11-14 | M2PJ-90A12-14 | ||
| 28 VDC/VAC | M2PJ-90A11-28 | M2PJ-90A12-28 | ||
Note: Enter the desired color symbol for the Display in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White.
*1. You can change the screen colors of chameleon models between red, green, and orange by changing the terminal
wiring. Refer to Data Sheet for details.
*2. Incandescent lamps are supplied with colored plates (white, red, green, blue, and orange) and legend plates (milk-
white and transparent). Use the appropriate combination.
wiring. Refer to Data Sheet for details.
*2. Incandescent lamps are supplied with colored plates (white, red, green, blue, and orange) and legend plates (milk-
white and transparent). Use the appropriate combination.
| Case color | Black | Light gray | Display color symbol | |
|---|---|---|---|---|
| LED | 24 VDC | M2PJ-90A21-24E(1)(2) | M2PJ-90A22-24E(1)(2) | R O G W |
| Incandescent lamp | 6 VDC/VAC | M2PJ-90A21-06 | --- | * |
| 14 VDC/VAC | M2PJ-90A21-14 | M2PJ-90A22-14 | ||
| 28 VDC/VAC | M2PJ-90A21-28 | M2PJ-90A22-28 | ||
Note: Enter the desired color symbols for the Display in (1) and (2). (R) = Red, (O) = Orange, (G) = Green, (W) = White.
* Incandescent lamps are supplied with colored plates (white, red, green, blue, and orange) and legend plates (milk-
white and transparent). Use the appropriate combination.
white and transparent). Use the appropriate combination.
M2PA (Square) Single Screen Models
| Case color | Black | Light gray | Display color symbol | |
|---|---|---|---|---|
| LED | 5 VDC | M2PA-90A11-05E(1) | M2PA-90A12-05E(1) | R O G W |
| 12 VDC | M2PA-90A11-12E(1) | M2PA-90A12-12E(1) | ||
| 24 VDC | M2PA-90A11-24E(1) | M2PA-90A12-24E(1) | ||
| Chameleon | 12 VDC | M2PA-90AG1-12EK | M2PA-90AG2-12EK | *1 |
| 24 VDC | M2PA-90AG1-24EK | M2PA-90AG2-24EK | ||
| Incandescent lamp | 6 VDC/VAC | M2PA-90A11-06 | M2PA-90A12-06 | *2 |
| 14 VDC/VAC | M2PA-90A11-14 | M2PA-90A12-14 | ||
| 28 VDC/VAC | M2PA-90A11-28 | M2PA-90A12-28 | ||
Note: Enter the desired color symbol for the Display in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White.
*1. You can change the screen colors of chameleon models between red, green, and orange, by changing the terminal
wiring. Refer to Data Sheet for details.
*2. Incandescent lamps are supplied with colored plates (white, red, green, blue, and orange) and legend plates (milk-
white and transparent). Use the appropriate combination.
wiring. Refer to Data Sheet for details.
*2. Incandescent lamps are supplied with colored plates (white, red, green, blue, and orange) and legend plates (milk-
white and transparent). Use the appropriate combination.
| Case color | Black | Light gray | Display color symbol | |
|---|---|---|---|---|
| LED | 24 VDC | M2PA-90A21-24E(1)(2) | M2PA-90A22-24E(1)(2) | R O G W |
| Incandescent lamp | 6 VDC/VAC | M2PA-90A21-06 | M2PA-90A22-06 | * |
| 14 VDC/VAC | M2PA-90A21-14 | M2PA-90A22-14 | ||
| 28 VDC/VAC | M2PA-90A21-28 | M2PA-90A22-28 | ||
Note: Enter the desired color symbols for the Display in (1) and (2). (R) = Red, (O) = Orange, (G) = Green, (W) = White.
* Incandescent lamps are supplied with colored plates (white, red, green, blue, and orange) and legend plates (milk-
white and transparent). Use the appropriate combination.
white and transparent). Use the appropriate combination.
M2PT (Round) Single Screen Models
| Case color | Light gray | Display color symbol | |
|---|---|---|---|
| LED | 5 VDC | M2PT-90A12-05C(1) | R O G W |
| 12 VDC | M2PT-90A12-12C(1) | ||
| 24 VDC | M2PT-90A12-24C(1) | ||
| Incandescent lamp | 28 VDC/VAC | M2PT-90A12-28 | * |
Note: Enter the desired color symbol for the Display in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White.
* Incandescent lamps are supplied with a colored plates (white, red, green, blue, and orange). Use the appropriate
combination. Models A3PT and M2PT (round models), however, are not supplied with legend plates.
combination. Models A3PT and M2PT (round models), however, are not supplied with legend plates.
Ordering Individually

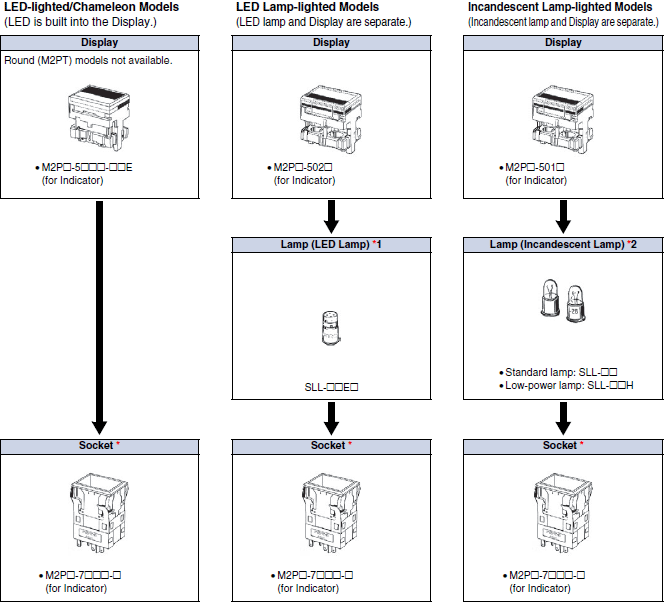

Displays, Lamps, and Sockets can be ordered separately. Combinations that are not available as sets can be created using individual Units. Also, store the parts as spares for maintenance and repairs.
* The Socket is compatible with LED-lighted, LED lamp-lighted, and incandescent lamp-lighted models.
*1. Number of necessary LED lamps.
| Screen pattern | M2PJ | M2PA | M2PT |
|---|---|---|---|
| Single screen | 4 | 2 | 2 |
| Horizontal 2-split screen | 2 | --- | |
| Vertical 2-split screen | --- | --- | |
| Vertical 3-split screen
Horizontal 3-split screen |
--- | --- | |
| 4-split screen | --- | --- |
*2. Number of necessary incandescent lamps.
| Screen pattern | M2PJ | M2PA | M2PT |
|---|---|---|---|
| Single screen | 2 | 1 | 2 |
| Horizontal 2-split screen | 4
(low-power incandescent lamp) |
2 | --- |
| Vertical 2-split screen | --- | --- | |
| Vertical 3-split screen
Horizontal 3-split screen |
--- | --- | |
| 4-split screen | --- | --- |
Display
LED-lighted Models (LED is built-in.)
| Appearance |
Split-screen color (color symbol) |
White (W) | Red (R) | Green (G) | Orange (O) | Selection precautions | |
|---|---|---|---|---|---|---|---|
| Rectangular models  |
Single screen |
|
M2PJ-5701-[][]E | M2PJ-5702-[][]E | M2PJ-5703-[][]E | M2PJ-5706-[][]E | Enter the voltage to be used in the [][] at the end of the model number. Examples of voltage used:  Horizontal 2-split screen models support only 24V. For the color of the shaded part, select the model according to the colors given at the top of the table. |
| Horizontal 2- 2 split screen |
|
M2PJ-5711-[][]E | M2PJ-5712-[][]E | M2PJ-5713-[][]E | M2PJ-5716-[][]E | ||
|
M2PJ-5721-[][]E | M2PJ-5722-[][]E | M2PJ-5723-[][]E | M2PJ-5726-[][]E | |||
|
M2PJ-5731-[][]E | M2PJ-5732-[][]E | M2PJ-5733-[][]E | M2PJ-5736-[][]E | |||
|
M2PJ-5741-[][]E | M2PJ-5742-[][]E | M2PJ-5743-[][]E | M2PJ-5746-[][]E | |||
| Square models  |
Single screen |
|
M2PA-5701-[][]E | M2PA-5702-[][]E | M2PA-5703-[][]E | M2PA-5706-[][]E | |
| Horizontal 2-split screen |
|
M2PA-5711-[][]E | M2PA-5712-[][]E | M2PA-5713-[][]E | M2PA-5716-[][]E | ||
|
M2PA-5721-[][]E | M2PA-5722-[][]E | M2PA-5723-[][]E | M2PA-5726-[][]E | |||
|
M2PA-5731-[][]E | M2PA-5732-[][]E | M2PA-5733-[][]E | M2PA-5736-[][]E | |||
|
M2PA-5741-[][]E | M2PA-5742-[][]E | M2PA-5743-[][]E | M2PA-5746-[][]E | |||
Note: 1. A cap, legend plate (transparent), colored plate, white plunger case, and LED (with a current-limiting resistor) are
built into the standard lighting unit.
2. Split-screen coloring configurations are given with the "OMRON" mark on the Sockets facing down.
built into the standard lighting unit.
2. Split-screen coloring configurations are given with the "OMRON" mark on the Sockets facing down.
LED Lamp-lighted Models (LED is not built-in.)
| Model | Rectangular models
 |
Square models
 |
Round models
 |
Selection precautions | |||
|---|---|---|---|---|---|---|---|
| Screen
pattern |
Screen | Model | Screen | Model | Screen | Model | |
| Single screen |  |
M2PJ-5021 |  |
M2PA-5021 |  |
M2PT-5021 | Colored plates (white, red, green, and orange),
a legend plate (transparent), and a light baffle (split-screen models only) are included. Use the appropriate combination for the LED coloring required. The number of white colored plates required to enable colored illumination for the corresponding screen-split configuration is included. (For example, 4-split screen models include 4 white colored plates). The number of colored plates included for each model are shown in the following table.  |
| Horizontal 2-
split screen |
 |
M2PJ-5022 |  |
M2PA-5022 | --- | ||
| Vertical 2-
split screen |
 |
M2PJ-5023 | --- | --- | |||
| Horizontal 3-
split screen |
 |
M2PJ-5024 | --- | --- | |||
| Vertical 3-
split screen |
 |
M2PJ-5025 | --- | --- | |||
| 4-split screen |  |
M2PJ-5026 | --- | --- | |||
* The following types of colored plates are included with Horizontal and Vertical 3-splitScreen Switches.
White: One colored plate for a 2-split screen and two colored plates for a 4-split screen.
Red, green, or orange: One colored plate for a 2-split screen and one colored plates for a 4-split screen.
Incandescent Lamp-lighted Models (Incandescent lamp is not built-in.)
| Model | Rectangular models
 |
Square models
 |
Round models
 |
Selection precautions | |||
|---|---|---|---|---|---|---|---|
| Screen
pattern |
Screen | Model | Screen | Model | Screen | Model | |
| Single
screen |
 |
M2PJ-5011 |  |
M2PA-5011 |  |
M2PT-5011 * | Colored plates (white, red, green, orange, and blue), a
legend plate (transparent), and a light baffle (split- screen models only) are supplied. *M2PT (round) models do not contain a legend plate. The number of colored plates supplied is shown in the following table.  |
| Horizontal
2-split screen |
 |
M2PJ-5012 |  |
M2PA-5012 | --- | ||
| Vertical
2-split screen |
 |
M2PJ-5013 | --- | --- | |||
| Horizontal
3-split screen |
 |
M2PJ-5014 | --- | --- | |||
| Vertical
3-split screen |
 |
M2PJ-5015 | --- | --- | |||
| 4-split
screen |
 |
M2PJ-5016 | --- | --- | |||
* The following types of colored plates are included with Horizontal and Vertical 3-splitScreen Switches.
All colors: One colored plate for a 2-split screen and one colored plate for a 4-split screen.
Chameleon Models (with Built-in LED)
| Shape | Rated voltage | Chameleon indicator | |
|---|---|---|---|
| Rectangular |
|
12 VDC | M2PJ-5800-12E |
| 24 VDC | M2PJ-5800-24E | ||
| Square |
|
12 VDC | M2PA-5800-12E |
| 24 VDC | M2PA-5800-24E | ||
Note: 1. With the chameleon models, the whole screen lights red, green, or orange (i.e., red and green simultaneously).
2. A cap, legend plate (transparent), white colored plate, and LED (with a current-limiting resistor) are built into the
Display.
2. A cap, legend plate (transparent), white colored plate, and LED (with a current-limiting resistor) are built into the
Display.
Lamp
LED Lamp
| Voltage | 5 VDC | 12 VDC | 24 VDC |
Applicable cap (color) (colored plate) |
Selection precautions |
|---|---|---|---|---|---|
| Color | Model (DC only) | Model (DC only) | Model (DC only) | ||
| Red | SLL-05ER | SLL-12ER | SLL-24ER | Red | In the standard setup, 4 LED lamps are used with M2PJ models and 2 LED lamps are used with M2PA and M2PT models. |
| Yellow | SLL-05EY | SLL-12EY | SLL-24EY | Orange | |
| Green | SLL-05EG | SLL-12EG | SLL-24EG | Green | |
| White | SLL-05EW | SLL-12EW | SLL-24EW | White |
Incandescent Lamp
| Lamp type | Standard lamp | Low-voltage lamp | Selection precautions |
|---|---|---|---|
| 5 VAC/VDC | SLL-06 | SLL-06H | In the standard setup for M2PJ models, 2 lamps are used with single screen models, and 4 lamps are used with split-screen models. If 3 or 4 lamps are lit continuously, use low-power lamps. In the standard setup for M2PA models, 1 lamp is used with single screen models, and 2 lamps are used with split-screen models. In the standard setup for M2PT models, 2 lamps are used. |
| 12 VAC/VDC | SLL-14 | SLL-14H | |
| 24 VAC/VDC | SLL-28 | SLL-28H |
Socket
(common to both incandescent lamp-lighted and LED-lighted models)
Rectangular  |
Square  |
Round  |
Selection precautions |
|---|---|---|---|
| Model | Model | Model | |
| M2PJ-7010-1 | M2PA-7010-1 | M2PT-7010-2 | The end digit denotes the color of the flange: -1 denotes a black flange, and -2 denotes a light gray flange. Round switches are available only in light gray, and not in black. |
