Automatic Fine-tuning of Heating Temperatures When Mounting PCB Components

Case Number 270

last update: February 19, 2009

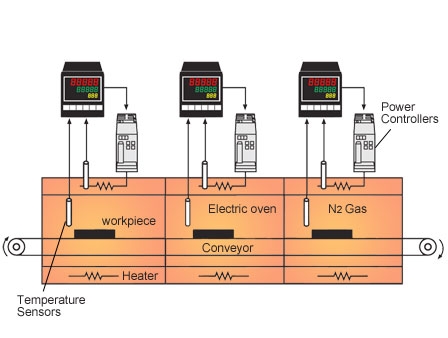

Achieve high-precision temperature control in conveyor ovens by adding a temperature sensor near the PCB
Cascade control is performed with a High-speed, High-precision Digital Temperature Controller with multiple outputs.

Know-How

Cascade control is performed using the E5AR Digital Temperature Controller.

Benefit / Efficiency

Fine-tuning of temperature control is automated to achieve high-precision temperature control.

Industry

Semiconductors / Electronics
Work / Process

Control
Product Category

Temperature Controllers

Use Products

Digital Controller E5AR

E5AR Digital Controllers offer high speed,high precision, and multiple I/O and use a 5-digit, 3-row LCD display for high visual clarity.
