E2C-X5AH 3M
Separate Amplifier Proximity Sensor with Adjustment Potentiometer
Sensor Head, Inductive type, Shielded, M18*1mm, Sensing distance 5 mm, Pre-wired models(3 m)
| Sensing head size |
M18 |
|---|---|
| Type |
Shielded |
| Sensing method |
Inductive type |
| Sensing distance |
5 mm |
- Ratings/Performance
As of August 8, 2016
| Type | Shielded |
|---|---|
| Sensing method | Inductive type |
| Sensing distance | 5 mm |
| Differential distance | 0.1 mm Max. |
| Sensing object | Ferrous metal (Sensitivity lowers with non-ferrous metals.) |
| Standard sensing object | Iron 18 x 18 x 1 mm |
| Standard or Different frequency | Standard |
| Ambient temperature | Operating: -10 to 200 ℃ Storage: -10 to 200 ℃ |
| Ambient humidity | Operating: 35 to 95%RH Storage: 3595%RH |
| Temperature influence | +/- 0.2%/CEL |
| Vibration resistance | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | 500 m/s**2 for 3 times each in X, Y, and Z directions |
| Degree of protection | IEC60529: IP60 |
| Connection method | Pre-wired models(Cable length: 3 m) |
| Weight (Packed state) | approx. 140 g |
| Material (case) | Brass |
| Material (sensing surface) | PEEK |
| Material (clamping nuts) | Brass nickel plating |
| Material (toothed washer) | Iron zinc plating |
| Amplifier unit/sensor head of combination | E2C-JC4EH |
As of August 8, 2016

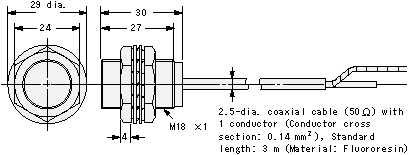

- Dimensions
As of August 8, 2016
As of August 8, 2016

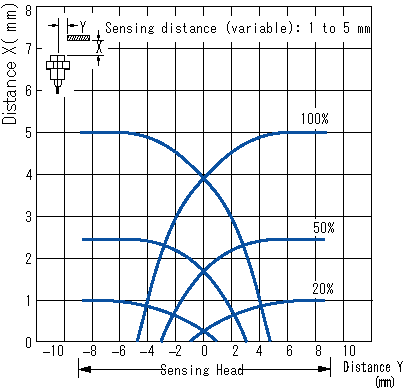

- Sensing range
As of August 8, 2016
As of August 8, 2016

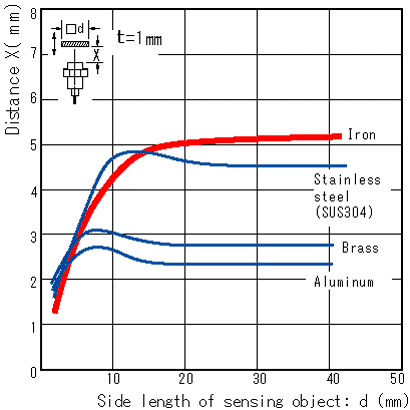

- Sensing distance vs. size and material of sensing object
As of August 8, 2016
As of August 8, 2016
