E3Z-T86

Compact Photoelectric Sensor with Built-in Amplifier


Through-beam, Sensing distance 15m, Light-ON/Dark-ON selectable, PNP output, M8 connector models

Sensing method	Through-beam
Sensing distance	0m to 15m
Light source	Infrared LED
Control output (Output type)	PNP open collector output
Connection method	M8 connector models

Item list of E3Z

Ratings/Performance

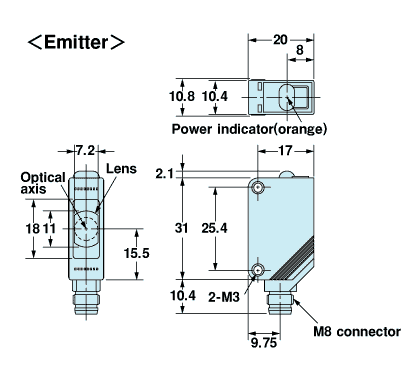

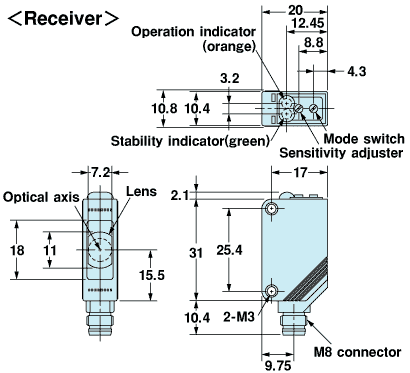

Dimensions

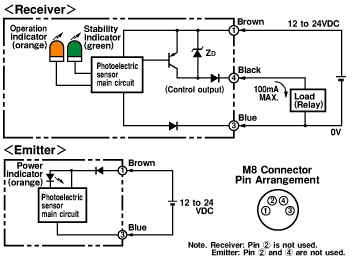

Output circuit

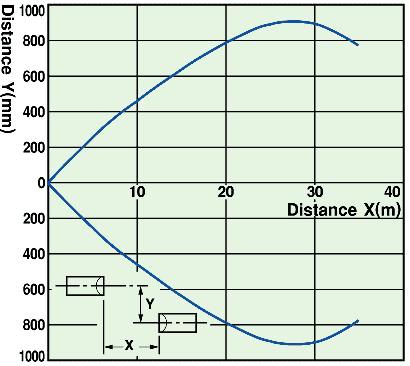

Parallel operating range

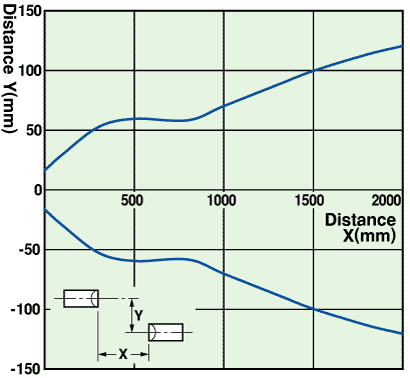

Setting distance

Ratings/Performance

As of September 9, 2016


Sensing method	Through-beam
Sensing distance	0m to 15m
Standard sensing object	Opaque 12 mm dia. Min.
Directional angle	Emitter: 3 to 15 DEG Receiver: 3 to 15 DEG
Light source	Infrared LED
Power supply voltage	12 to 24 VDC -10% to 10% (ripple (p-p) 10% Max.)
Current consumption	Emitter: 15 mA DC Max. Receiver: 20 mA DC Max.
Control output (Output type)	PNP open collector output
Control output (Load current)	0 to 100 mA
Control output (Residual voltage)	(DC) 1 V Max. (Load current: Less than 10mA) (DC) 2 V Max. (Load current: 10 to 100 mA)
Operation mode	Light-ON/Dark-ON selectable
Load power supply voltage	26.4 VDC Max.
Protective circuit	Surge suppressor Output short-circuit protection Power supply reverse polarity protection
Response time	1 ms Max.
Sensitivity setting	Single-turn adjustment
Ambient illuminance	Incandescent lamp: 3000 lux Max., Sunlight: 10000 lux Max.
Ambient temperature	Operating: -40 to 55℃ Storage: -40 to 70℃ (with no icing or condensation)
Ambient humidity	Operating: 35 to 85% Storage: 35 to 95% (with no icing or condensation)
Insulation resistance	20 MOhm Min. at 500 VDC between charged parts and the case
Dielectric strength	1000 VAC at 50/60 Hz for 1 minute between charged parts and the case
Vibration resistance	10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	500 m/s**2 for 3 times each in X, Y, and Z directions
Degree of protection	IEC60529: IP67
Connection method	M8 connector models
Indicator	Operation indicator (orange), Stability indicator (green), Power indicator (orange)
Tightening torque	0.5 N・m Max. (with M3 screw)
Material (case)	PBT
Material (lens)	Denatured Polyarylate
Accessories	Instruction manual
Note	Please use XS3F-M42-40-L (made of PUR) when you use it in the low temperature environment of -25 to -40 CEL..
