EE-SPY311
Light Convergent Reflective Photomicrosensor
Modulated Convergent reflective type, Horizontal type, Connector type, Sensing distance: 2～5 mm, Dark-ON, NPN voltage output
| Appearance |
Horizontal type |
|---|---|
| Luminous method |
Modulated |
| Sensing method |
Convergent reflective type |
| Sensing distance |
2 to 5 mm (Reflection factor: 90%; white paper 15 x 15 mm) |
| Operation mode |
Dark-ON |
| Control output （Output type） |
NPNvoltage output |
| Connection method |
Connector type（soldering not possible ） |
- Ratings/Performance
As of August 8, 2016
| Appearance | Horizontal type |
|---|---|
| Luminous method | Modulated |
| Sensing method | Convergent reflective type |
| Sensing distance | 2 to 5 mm (Reflection factor: 90%; white paper 15 x 15 mm) |
| Distance to background | 20 mm max. (glass with aluminum deposition) |
| Operation mode | Dark-ON |
| Minimum sensing object | Pure copper wire (0.05 mm dia.) |
| Differential distance elements | 0.2 mm max. (with a sensing distance of 3 mm, horizontally) |
| Light source （Peak wavelength） | GaAs infrared LED |
| Indicator | Light indicator (red) |
| Power supply voltage | 5 to 24V (-10% to 10%) (ripple (p-p)5% max.) |
| Current consumption | Average: 15 mAmax. Peak: 50 mAmax. |
| Control output （Output type） | NPNvoltage output |
| Control output （Load power supply voltage） | 5 to 24 V |
| Control output （Load current） | 80 mAmax. |
| Control output （Residual voltage） | 1.0 Vmax. (at 80 mA load current) 0.4 Vmax. (at 10 mA load current) |
| Response frequency elements | 100 Hzmin. （See "Measurement condition of Response frequency elements"） |
| Illumination on the surface receiver | 3000 lx max. (incandescent light, sunlight) |
| Ambient temperature | Operating: -10 to +55℃ Storage: -25 to +65℃ （with no icing or condensation） |
| Ambient humidity | Operating: 5 to 85% Storage: 5 to 95% （with no icing or condensation） |
| Vibration resistance | 10 to 50 Hz, 1.5 mm double amplitude for 2 h |
| Shock resistance | 500 m/s**2 for 3 times each in X, Y, and Z directions |
| Degree of protection （IEC60529） | IP50 |
| Connection method | Connector type（soldering not possible ） |
| Weight | Approx. 2.6 g |
| Material | Case: Polycarbonate(PC) Holder: Polycarbonate(PC) |
As of August 8, 2016

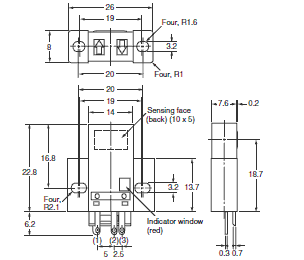

- Dimensions
As of August 8, 2016
Caution: All_units are in millimeters unless otherwise indicated.
Terminal array
As of August 8, 2016
- I/O Circuit diagram
As of August 8, 2016
Timing chart
As of August 8, 2016
- Measurement condition of Response frequency elements
As of August 8, 2016
As of August 8, 2016
