E2J-JC4A 2M
Long Sensing-distance Capacitive Separate Amplifier Proximity Sensor
Amplifier Unit, Capacitive type, DC 3-wire models, Operation mode NO/NC selectable, NPN open collector output, Pre-wired models(2 m)
| Sensing method |
Capacitive type |
|---|---|
| Operation mode |
NO/NC selectable |
- Ratings/Performance
As of August 8, 2016
| Sensing method | Capacitive type |
|---|---|
| Power supply voltage | 24 VDC (-20% to +20%) ripple(p-p) 10% Max. |
| Current consumption | 30 mA max. |
| Control output (Output type) | NPN open collector output |
| Control output (Switching capacity) | 0 to 100 mA(30 VDC Max.) |
| Control output (Residual voltage) | 1 V Max. |
| Indicator | Operation indicator (orange), Power indicator (green) |
| Operation mode | NO/NC selectable |
| Sensitivity setting | 8-turn adjustment |
| Protective circuit | Surge suppressor Output short-cut protection Power supply reverse polarity protection |
| Standard or Different frequency | Standard |
| Ambient temperature | Operating: -10 to 55 ℃ Storage: -10 to 55 ℃ |
| Ambient humidity | Operating: 35 to 85%RH Storage: 3585%RH |
| Temperature influence | +/- 25% Max. of sensing distance in temperature range of 0 to +40 CEL (As the basis for sensing distance of 23 CEL) |
| Voltage influence | +/- 1% Max. of sensing distance in rated voltage range +/- 20%. (As the basis for sensing distance at standard power voltage) |
| Insulation resistance | 50 MOhm Min. at 500 VDC between charged parts and the case |
| Dielectric strength | 1000 VAC 50/60 Hz for 1 minute between charged parts and the case |
| Vibration resistance | 10 to 150 Hz, 1.5-mm or 100 m/s**2 double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | 300 m/s**2 for 3 times each in X, Y, and Z directions |
| Degree of protection | IEC60529: IP50 |
| Connection method | Pre-wired models(Cable length: 2 m) |
| Weight (Packed state) | approx. 60 g |
| Material (case) | ABS |
| Accessories | Mounting Bracket, Instruction Manual |
| Amplifier unit/sensor head of combination | E2J-W*MA |
As of August 8, 2016

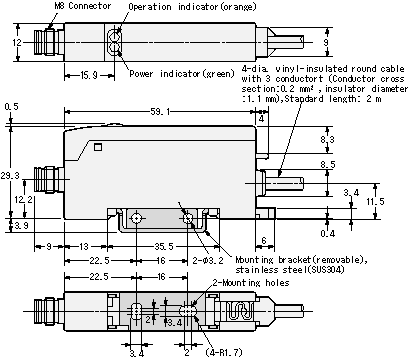

- Dimensions
As of August 8, 2016
As of August 8, 2016

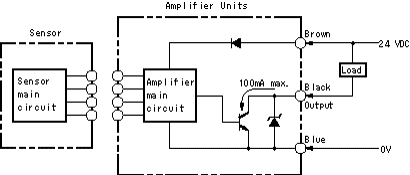

- Output circuit
As of August 8, 2016
As of August 8, 2016
