E2E-X3T1 2M
Standard Proximity Sensor
Inductive type, Shielded, M12*1mm, AC/DC 2-wire models, Sensing distance 3 mm, Operation mode NO, AC/DC 2-wire models, Pre-wired models(2 m)
| Sensing head size |
M12 |
|---|---|
| Type |
Shielded |
| Sensing method |
Inductive type |
| Sensing distance |
3 mm-10% to +10% |
| Setting distance |
0 to 2.4 mm |
| Operation mode |
NO |
- Ratings/Performance
As of September 9, 2016
| Type | Shielded |
|---|---|
| Sensing method | Inductive type |
| Sensing distance | 3 mm-10% to +10% |
| Setting distance | 0 to 2.4 mm |
| Differential distance | 10% Max. of sensing distance |
| Sensing object | Ferrous metal (Sensitivity lowers with non-ferrous metals.) |
| Standard sensing object | Iron 12 x 12 x 1 mm |
| Response frequency | DC: 1 kHz(average) AC: 25 Hz(average) |
| Power supply voltage | 24 to 240 VDC 48 to 240 VAC |
| Operating voltage range | 20 to 264 VDC 40 to 264VAC |
| Leakage current | DC: 1 mA max. AC: 2 mA max. |
| Control output (Output type) | AC/DC 2-wire models |
| Control output (Switching capacity) | 5 to 100 mA |
| Control output (Residual voltage) | (AC)10 V Max.(Load current 5 mA with cable length of 2 m) (DC)6 V Max.(under load current with cable length of 2 m) |
| Indicator | Operation indicator (red), Operation setting indicator (green) |
| Operation mode | NO |
| Sensitivity setting | - |
| Self-diagnostic output | - |
| Protective circuit | Surge suppressor Output short-cut protection |
| Standard or Different frequency | Standard |
| Ambient temperature | Operating: -25 to 70 ℃ Storage: -40 to 85 ℃ |
| Ambient humidity | Operating: 35 to 95%RH Storage: 3595%RH |
| Temperature influence | +/- 10% Max. of sensing distance in temperature range of -25 to +70 CEL (As the basis for sensing distance of 23 CEL) |
| Voltage influence | +/- 1% Max. of sensing distance in rated voltage range +/- 15%. (As the basis for sensing distance at standard power voltage) |
| Insulation resistance | 50 MOhm Min. at 500 VDC between charged parts and the case |
| Dielectric strength | 4000 VAC 50/60 Hz for 1 minute between charged parts and the case |
| Vibration resistance | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | 1000 m/s**2 for 10 times each in X, Y, and Z directions |
| Degree of protection | IEC60529: IP67 Company standard: Oil-proof |
| Connection method | Pre-wired models(Cable length: 2 m) |
| Weight (Packed state) | approx. 80 g |
| Material (case) | Brass nickel plating |
| Material (sensing surface) | PBT |
| Material (clamping nuts) | Brass nickel plating |
| Material (toothed washer) | Iron zinc plating |
| Accessories | Instruction manual |
As of September 9, 2016

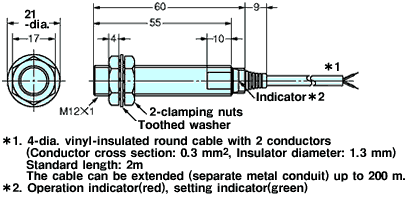

- Dimensions
As of September 9, 2016
As of September 9, 2016

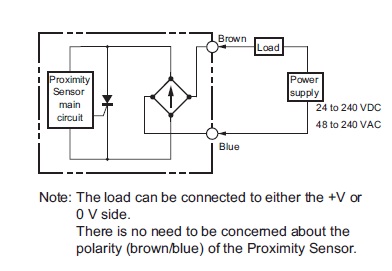

- Output circuit
As of September 9, 2016
As of September 9, 2016
- Sensing range
As of September 9, 2016
As of September 9, 2016

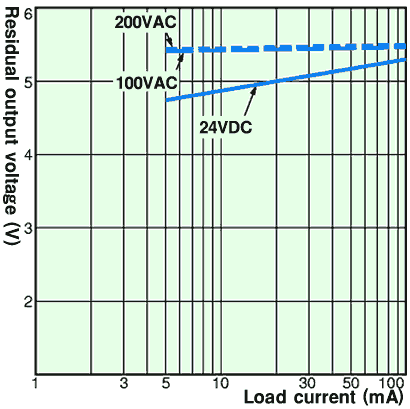

- Residual voltage
As of September 9, 2016
As of September 9, 2016
- Sensing distance vs. size and material of sensing object
As of September 9, 2016
As of September 9, 2016
